M2354SJFBE

Quantity	Unit Price (USD)
1-99	5.03
100-499	3.86
500-999	3.22
1000-1999	2.91
2000-4999	2.81
5000+	Contact

More details

Reference M2354SJFBE

Condition New

Quantity 250 Item Items

Quantity :

More info
Specification
-

Sample Price (90% off of first 5 MCUs)

M2354SJFBE

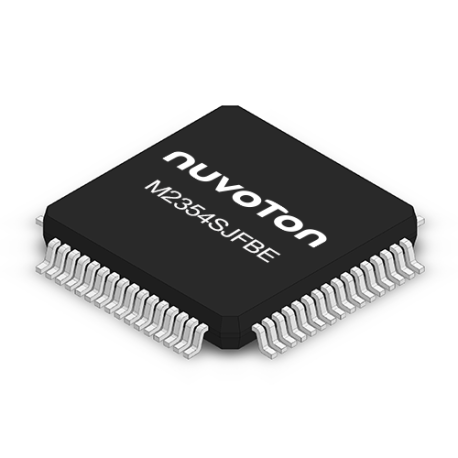

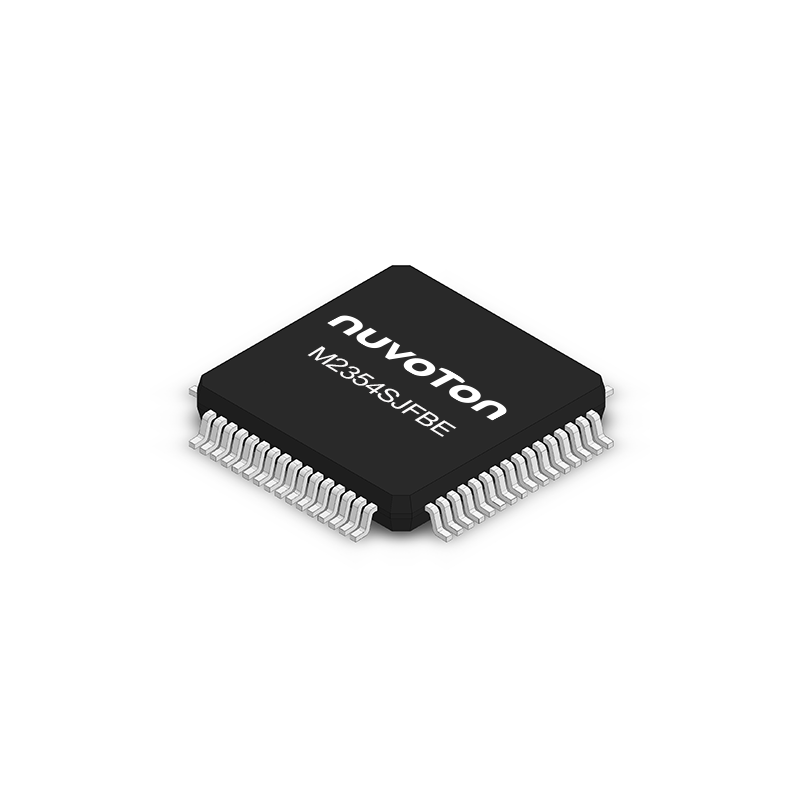

NuMicro^® M2354SJFBE is an Arm^® TrustZone^® microcontroller based on the Armv8-M architecture and powered by the Arm^® Cortex-M23® CPU, designed to enhance IoT security. It is suitable for long-term confidentiality requirements and highly sensitive data protection scenarios. The M2354SJFBE operates at frequencies up to 96 MHz, offers a wide operating voltage range of 1.7V to 3.6V, and a wide operating temperature range of -40°C to +105°C. The power consumption is 89.3 μA/MHz in LDO mode and 39.6 μA/MHz in DC-DC mode, which effectively extends the device battery life and meets the needs of long-term IoT operation.

For Secure FOTA, M2354SJFBE has built-in dual-bank Flash Memory of up to 1024 KB and 256 KB of SRAM. In terms of security, in addition to supporting XOM (Execute-Only-Memory) to prevent code theft, it also has a built-in encryption and decryption hardware engine and hardware key store to protect against Side-Channel Attack and Fault Injection Attack.

In terms of secure boot mechanism, M2354SJFBE supports the root of trust architecture based on DICE (Device Identifier Composition Engine), which can automatically generate a unique device identity and establish a chain of trust during the boot stage, effectively identifying the firmware version and preventing firmware rollback and tampering attacks. In addition, M2354SJFBE supports the ECDSA P-521 elliptic curve signature algorithm recommended by CNBC 2.0, which provides 256-bit security strength for symmetric encryption and provides protection against quantum transition periods.

M2354SJFBE supports a wide range of peripherals, including 1 set of CAN, 1 set of USB 2.0 full-speed OTG, up to 24 channels of 16-bit PWM output, 8 sets of UART, 4 sets of SPI/I²S, 1 set of Quad-SPI, 3 sets of I²C, and a real-time clock (RTC).

M2354SJFBE also integrates a number of analog components, including two analog comparators, a 16-channel 12-bit ADC, and a 2-channel 12-bit DAC.

For development tool support, Nuvoton provides the NuMaker-M2354KJB development board, as well as the Nu-Link debugger tool. In addition, it also supports popular development environments such as Keil MDK, IAR EWARM, Eclipse IDE with GNU GCC, etc.

M2354SJFBE can support the needs of various application markets, such as:

IoT devices that enable secure connectivity
Smart home appliances
Smart city facilities
Digital currency verification

Key Features：

•	Security Core
	-	Arm® Cortex®-M23 core Based
	-	TrustZone® technology based on Arm®v8-M architecture
	-	32-bit Single-cycle hardware multiplier
	-	32-bit 17-cycle hardware divider
	-	Up to 8 enclave memory protection units
	-	Up to 8 non-secure zone memory protection units
	-	8 Security Attribution Unit (SAU) configuration areas

•	Memories
	-	Up to 1 MB Dual-Bank Architecture Flash Memory with simultaneous read/write support
	-	Up to 256 KB of SRAM, with the first 32 KB performing isotope checks
		16 KB Secure Boot Memory (Secure Boot ROM)
	-	16 KB Flash User Program Loader (LDROM)
	-	8 KB Data Flash (Data Scrambling)
	-	2 KB Flash for Secure Key storage
	-	3 KB OTP memory for General Purpose (3 KB data + 1 KB lock bit)
	-	The 12 KB Secret OTP memory makes it easy to implement platform security features (root keys, product lifecycle management, firmware version control)
	-	ISP / ICP / IAP compilation

•	Power management
	-	Normal operating mode: 89.3 μA/MHz (LDO mode); 39.6 μA/MHz (DC-DC mode)
	-	Standby mode: 31.5 μA/MHz (LDO mode, CPU clock deactivated); 14.3 μA/MHz (CPU clock deactivated in DC-DC mode)
	-	Power-down mode: 20 μA
	-	Standby power-down mode: 2.0 μA
	-	Deep power-down mode: 0.5 μA (with V_BAT)
	-	Deep power-down mode: 0.1 μA (without V_BAT)
	-	V_BAT is powered to the real-time clock: 0.5 μA (80-bit backup scratchpad)

•	Encryption & Security
	-	True Random Number Generator (TRNG)
	-	AES-256/ SHA-512/ HMAC-512 (AES with CCM, GCM, GMAC modes)
	-	RSA-4096
	-	Elliptic Curve Cryptographic Accelerator (ECC): Supports ECDSA p521 CNSA2.0
	-	Secure Boot with DICE
	-	SM2/ SM3/ SM4 Cryptographic Accelerator (Chinese national cryptography standards)
	-	CRC Computing Unit

•	Communication Interface
	-	Up to 11 UART interfaces (up to 10.66 MHz), including 3 ISO-7816-3 interfaces, 6 RS-485 interfaces, 2 USCI interfaces, and other 2 LIN interfaces
	-	Up to 5 I²C interfaces (up to 1 Mbps), including up to 3 I²C SM Bus/PM Bus, 2 USCI
	-	Up to 7 SPI interfaces (up to 64 MHz), including 4 I²S interfaces, plus 1 Quad-SPI interface, 2 USCI interface
	-	Up to 5 I²S interfaces, 4 of which are shared with 4 SPIs
	-	Secure digital output/input interface (SDIO) (up to 50 MHz)

•	Advanced Connectivity
	-	USB 2.0 full speed device OTG controller with built-in PHY
	-	1 CAN interface up to 1 Mbps (CAN 2.0A and 2.0B standards)
	-	Crystal-less USB support
	-	Supports 8x13 COM/SEG Segment LCD Display

•	Characteristics
	-	It can operate at speeds up to 96 MHz
	-	Voltage range: 1.7V to 3.6V
	-	Temperature range: -40°C to +105°C
	-	Selectable Core Voltage: 1.26V or 1.2V in Normal Operation Mode and Standby Mode

•	Packages (RoHS)
	-	LQFP 64-pin (7x7 mm)

•	Evaluation Board
	-	NuMaker-M2354KJB
