NAU83R15YG

Quantity Unit Price (USD)

1-99 0.5

100-1000 0.38

1000+ 0.36

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

NAU83R15YG

Quantity	Unit Price (USD)
1-99	0.5
100-1000	0.38
1000+	0.36

More details

Reference NAU83R15YG

Condition New

Quantity 490 Item Items

Quantity :

More info
Specification
-

Sample Price (90% off of first 5 MCUs)

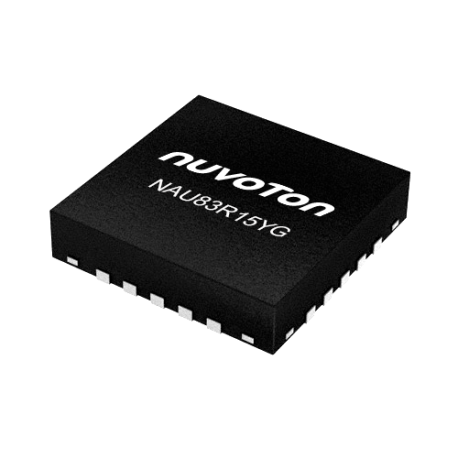

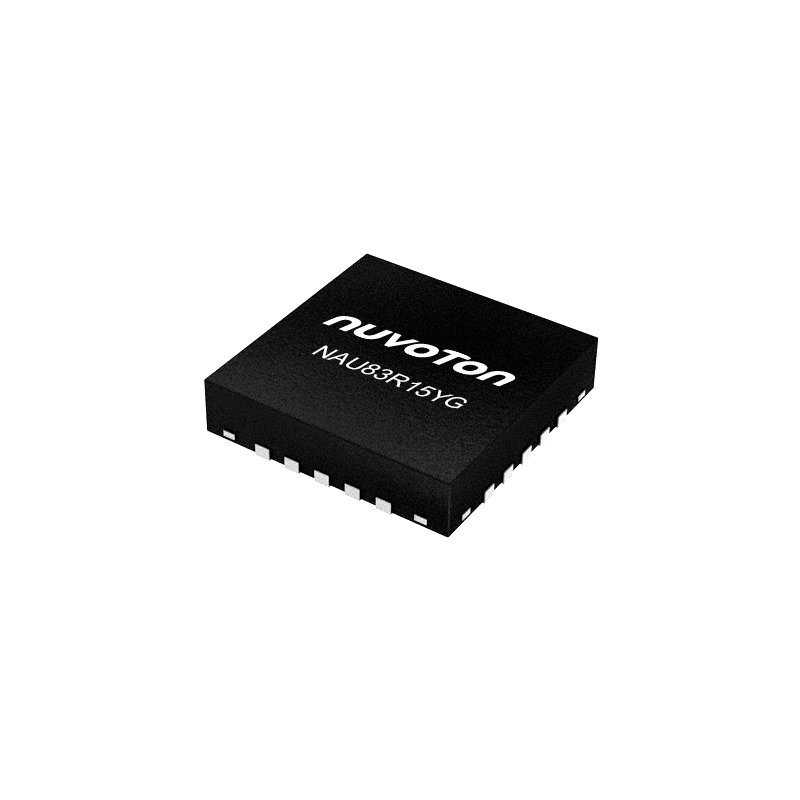

Nuvoton-NAU83R15YG

NAU83R15YG is a highly efficient, filter-free, mono Class-D audio amplifier, which is capable of driving a 4 Ω load with up to 3.2 W output power. This device provides Enable control and I²S audio input with low standby current and fast start-up time.

NAU83R15YG is ideal for the portable applications. NAU83R15YG provides advance features, such as 80 dB PSRR, 91% efficiency, ultra-low quiescent current and superior EMI performance.

Target Applications:

Gaming Controllers
Wireless (VR) Headset
Smart Remote Controller
Notebooks / Tablet PCs
Personal Media Players
Ultrasonic speakers

Key Features:

•	Audio Input
	-	Digital Audio Interface: I²S / PCM Input
	-	Pin Selectable I²S Left or Right Channel selection
	-	Pin Selectable PCM Time slot
	-	Sampling Rates: 8 ~ 96 kHz
	-	80 dB PSRR @ 217 Hz

•	Audio Output
	-	Powerful Mono Class-D Amplifier
	-	3.2 W (4 Ω @ 5V, 10% THD+N)
	-	1.76 W (4 Ω @ 4.2V, 1% THD+N)
	-	1.8 W (8 Ω @ 5V, 10% THD+N)
	-	1.0 W (8 Ω @ 4.2V, 1% THD+N)
	-	Low Output Noise: 12 µV _RMS

•	Advance Feature
	-	Low Current Shutdown and Standby Modes
	-	Click-and Pop Suppression: 26 µV _RMS

•	Operating Characteristics
	-	Voltage range: 2.5V ~ 5.25V
	-	Temperature range: -40°C ~ +85°C

•	Package
	-	QFN-20 (4 x 4 mm)
