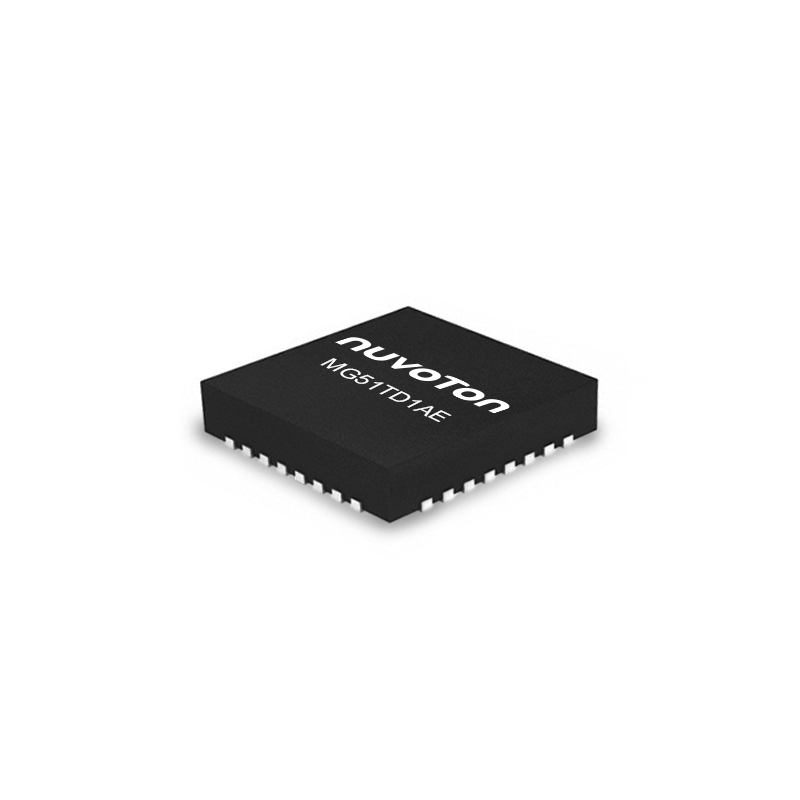

MG51TD1AE
|
Quantity |
Unit Price (USD) |
|
1-99 |
0.93 |
|
100-499 |
0.78 |
|
500-999 |
0.6 |
|
1000-1999 |
0.5 |
|
2000-4999 |
0.45 |
|
5000+ |
|
Flash Memory/ |
||||||
| 64K/4K | MG51PD1AE | MG51TD1AE | MG51LD1AE | |||
| 32K/4K | MG51EC1AE | MG51PC1AE | MG51TC1AE | MG51LC1AE | ||
| 32K/1K | MG51FC9AE | MG51XC9AE | ||||
| 16K/1K | MG51FB9AE | MG51XB9AE | ||||
| Package | TSSOP20 | QFN20 | TSSOP28 | LQFP32 | QFN33 | LQFP48 |
The NuMicro® MG51 series is an embedded Flash Memory type 1T 8051-based microcontroller. The instruction set is fully compatible with the standard 80C51 and performance enhanced. It supports 16 / 24 MHz core speed and features up to 64 KB of Flash Memory, 256 bytes of RAM and 4 KB of auxiliary RAM (XRAM), 4 KB of Flash loader memory (LDROM), 2.4V to 5.5V operating voltage, and -40°C to +105°C operating temperature.
The MG51 series also provides plenty of peripherals including four 16-bit Timers, two UARTs with frame error detection and automatic address recognition, three ISO 7816-3 interfaces, one SPI, one I2C, 12 channels of PWM, and 15-channel 12-bit 500 ksps ADC with continuous mode. The peripherals are equipped with 24 sources with 4-level-priority interrupts capability.
Supported packages include TSSOP 20-pin, QFN 20-pin, TSSOP 28-pin, LQFP 32-pin, QFN- 33-pin and LQFP 48-pin.
For the development, Nuvoton provides the NuMaker evaluation board and Nuvoton Nu-Link debugger. The 3rd Party IDE such as Keil C51, IAR EW8051, and NuEclipse SDCC compilers are also supported.
Target application：
- Home appliances
- LED lighting controls
- Motor controls
- Industrial automation
Features:
| • | Operating Characteristics | ||||||||||||||||||||||||||||||||||||
| - | Operating Voltage: 2.4 V to 5.5 V | ||||||||||||||||||||||||||||||||||||
| - | Temperature range: -40°C to +105°C | ||||||||||||||||||||||||||||||||||||
| - | EFT 4.4 kV | ||||||||||||||||||||||||||||||||||||
| - | ESD HBM 7 kV | ||||||||||||||||||||||||||||||||||||
| • | Core | ||||||||||||||||||||||||||||||||||||
| - | Fully static design 8-bit high performance 1T 8051-based CMOS microcontroller, running up to 24 MHz | ||||||||||||||||||||||||||||||||||||
| - | Instruction set fully compatible with MCS-51 | ||||||||||||||||||||||||||||||||||||
| - | 4-priority-level interrupts capability | ||||||||||||||||||||||||||||||||||||
| - | Dual Data Pointers (DPTRs) | ||||||||||||||||||||||||||||||||||||
| • | Memory | ||||||||||||||||||||||||||||||||||||
| - | Up to 64 KB Flash Memory | ||||||||||||||||||||||||||||||||||||
| - | 256 bytes on-chip RAM and 4 KB auxiliary RAM (XRAM) | ||||||||||||||||||||||||||||||||||||
| - | 4 KB Flash Memory for user program loader (LDROM) | ||||||||||||||||||||||||||||||||||||
| - | 128 bytes security protection ROM (SPROM) | ||||||||||||||||||||||||||||||||||||
| • | Clocks | ||||||||||||||||||||||||||||||||||||
| - | Default 16 MHz high-speed internal oscillator (HIRC) with selectable 24 MHz core speed, trimmed to ±1% (accuracy at 25°C, 2.4V to 5.5V), ±2% in -20°C to +105°C | ||||||||||||||||||||||||||||||||||||
| - | 10 kHz low-speed internal oscillator (LIRC) calibrating to ±1% by software from high-speed internal oscillator | ||||||||||||||||||||||||||||||||||||
| • | Power Management | ||||||||||||||||||||||||||||||||||||
| - | POR with 1.15V threshold voltage level | ||||||||||||||||||||||||||||||||||||
| - | Supports BOD (4.4V / 3.7V / 2.7V / 2.2V falling edge) | ||||||||||||||||||||||||||||||||||||
| - | LVR with 2.0V threshold voltage level | ||||||||||||||||||||||||||||||||||||
| • | Timer | ||||||||||||||||||||||||||||||||||||
| - | Four 16-bit timers | ||||||||||||||||||||||||||||||||||||
| - | 12 channels of pulse width modulator (PWM) output, with Fault Brake function | ||||||||||||||||||||||||||||||||||||
| - | One dedicated Self Wake-up Timer (WKT) for self-timed wake-up for low-power modes | ||||||||||||||||||||||||||||||||||||
| - | One programmable Watchdog Timer (WDT) clocked by dedicated 10 kHz internal source | ||||||||||||||||||||||||||||||||||||
| • | Communication Interface | ||||||||||||||||||||||||||||||||||||
| - | Two UART interfaces | ||||||||||||||||||||||||||||||||||||
| - | One I²C interface supporting Master / Slave mode with up to 400 kbps transmission rate | ||||||||||||||||||||||||||||||||||||
| - | One SPI supporting Master / Slave mode | ||||||||||||||||||||||||||||||||||||
| - | Up to three ISO7816-3 interfaces support UART function | ||||||||||||||||||||||||||||||||||||
| • | Analog | ||||||||||||||||||||||||||||||||||||
| - | Up to 15 single-end channels of 12-bit 500 ksps SAR ADC | ||||||||||||||||||||||||||||||||||||
| • | Up to 46 I/Os with interrupt capability | ||||||||||||||||||||||||||||||||||||
| - | Schmitt trigger input / TTL mode selectable | ||||||||||||||||||||||||||||||||||||
| - | I/O all supports interrupt capability | ||||||||||||||||||||||||||||||||||||
| - | Supports INT0 / INT1 interrupt pins | ||||||||||||||||||||||||||||||||||||
| - | Supports wake-up function | ||||||||||||||||||||||||||||||||||||
| • | 96-bit Unique ID (UID) | ||||||||||||||||||||||||||||||||||||
| • | 128-bit Unique Customer ID (UCID) | ||||||||||||||||||||||||||||||||||||
| • | Package | ||||||||||||||||||||||||||||||||||||
| - | Package is Halogen-free, RoHS-compliant and TSCA-compliant. | ||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||
| • | Evaluation Board | ||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||
For more details And documents, please link To Nuvoton Official Website GO
-
| Quantity | Discount | You Save |
|---|---|---|
| 100 | 16.13% | Up to$15.00 |
| 500 | 35.48% | Up to$164.98 |
| 1000 | 46.24% | Up to$430.03 |
| 2000 | 51.61% | Up to$959.95 |
| Part No. | MG51TD1AE |
| Flash (Kbytes) | 64 |
| SRAM (Kbytes) | 4 |
| Operating Voltage (V) | 2.4 to 5.5 |
| Package | LQFP33 |
| Operating Temp. Range | -40 to +105 |
