High Performance Laser Diode Series
Violet in TO-5.6 CAN Package (402nm,1.2W)

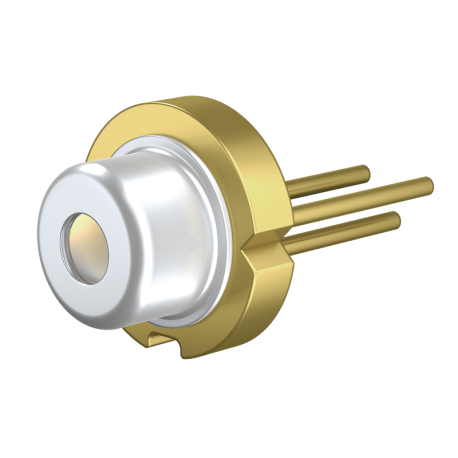

KLC433FS01WW
Overview
The laser diode which emits 402nm laser light, is assembled in a conventional TO-5.6 CAN package. Unique compound semiconductor process technology and low optical loss structure can realize high output power and high reliability lasers which are suitable for industrial use.
Features
- Transverse mode: Multi mode
- Wavelength: 402 nm (typ.)
- Package type: TO-56 CAN package
- Rated optical output power: 1.2W
- Operating case temperature (Tc) : 0 ~ +50 degrees C
- Emitter size: 14 μm x 1 μm
Applications
- Laser Direct Imaging
- Material processing
- Analysis, Measurement
- Display
- Other industrial use
Absolute Maximum Ratings
| Item | Symbol | Value | Unit | Condition |
|---|---|---|---|---|
| Output power | Po | 1.4 | W | CW |
| Operating case temperature | Tc | 0 to +50 | °C | CW |
| Storage temperature | Tstg | -40 to +85 | °C | - |
Electrical and Optical Characteristics
Tc=25°C, CW| Item | Symbol | Min. | Typ. | Max. | Unit | Condition |
|---|---|---|---|---|---|---|
| Threshold current | Ith | - | 130 | 200 | mA | - |
| Operating current | Iop | 600 | 720 | 800 | mA | 1.2W |
| Operating voltage | Vop | - | 4.4 | 5.2 | V | 1.2W |
| Wavelength | λ | 395 | 402 | 405 | nm | 1.2W |
| Beam divergence |
θh | 8 | 12 | 20 | deg | 1.2W |
| θv | 40 | 44 | 48 | deg | 1.2W |
