NuMaker-HMI-M2354

The NuMaker-HMI-M2354 board is designed for graphic user interface (GUI) development for embedded applications based on Nuvoton NuMicro^® M2354 Series. The board consists of two main parts to provide development flexibility for users to create GUI-enhanced applications and there is a bottom board as a main control board and a top board as a LCD panel board. It is designed for LCD display or GUI evaluation, prototype development and function validation. In a summary, users can use it to create a powerful and stunning graphics for the embedded system.

A NuMaker-HMI-M2354 main board is based on NuMicro^® M2354KJFAE. For the development flexibility, the board provides the extension connectors of M2354KJFAE, the Arduino UNO compatible headers and is able to adopt multiple power supply by external power connectors. Furthermore, the Nuvoton-designed ammeter connector can measure the power consumption instantly, which is essential for a prototype evaluation. The main board is also equipped with a Wi-Fi module for easy network connectivity.

In addition, there is an attached on-board debugger and programmer “Nu-Link2-Me”. The Nu-Link2-Me supports on-chip debugging, online and offline ICP programming via SWD interface. The Nu-Link2-Me supports virtual COM (VCOM) port for printing debug messages on PC. Besides, the programming status could be shown on the built-in LEDs and the Nu-Link2-Me could be detached from the evaluation board and become a stand-alone mass production programmer. With the full functions of the NuMaker-HMI-M2354 board, it is good to develop secure MCU functions with power consumption sensitive applications.

The NuMaker-HMI-M2354 consists of two parts, NuMaker-M2354 main board and a NuTFT Kit.

NuMaker-HMI-M2354 Features

• NuMaker-M2354 Main Board Features
  • NuMicro^® M2354KJFAE microcontroller with function compatible with:
    • M2354LJFAE
    • M2354SJFAE
  • M2354KJFAE extension connectors
  • Arduino UNO compatible extension connectors
  • ETM (embedded trace macrocell) debug interface for instruction and data tracing of a processor
  • Wi-Fi module for wireless application
  • MicroSD Card slot for T-Flash
  • Ammeter connector for measuring the microcontroller’s power consumption
  • Flexible board power supply:
    • External V_DD power connector
    • Arduino UNO compatible extension connector Vin
    • USB FS connector on M2354 target board
    • ICE USB connector on Nu-Link2-Me
  • On-board Nu-Link2-Me debugger and programmer:
    • Debug through SWD interface
    • Online/offline programming
    • Virtual COM port function
• NuTFT Kit Features
  • 16 M bits (2 MB) SPI Flash * 1 (W25Q16CV)
  • 24” (320x240) LCD Panel with 4-Wire ADC Touch Function (LCD Driver is Ili9341)
  • Five Direction Joystick * 1
  • Push Button * 2
  • Arduino UNO compatible extension connectors
• Photos of Boards
  •

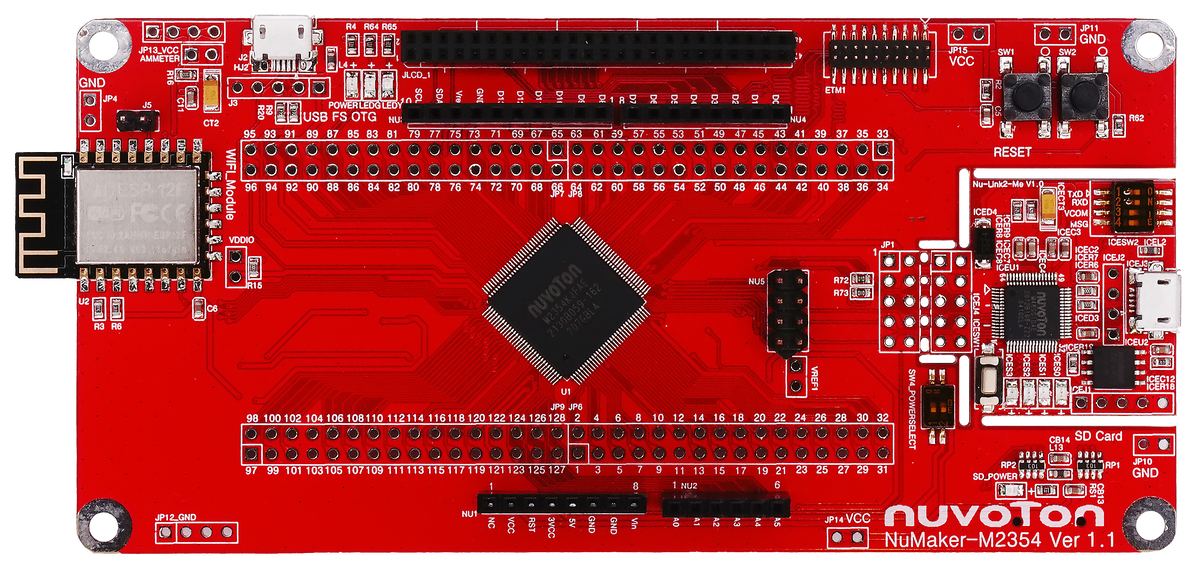

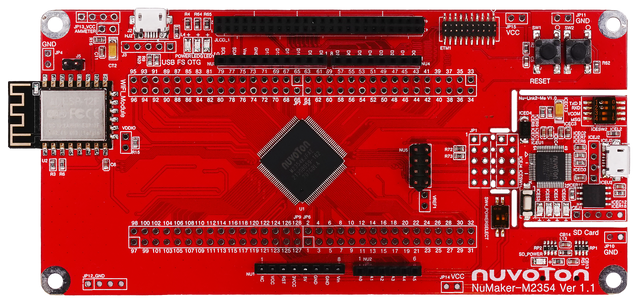

  • NuMaker-M2354 Board
  •
  • NuTFT Kit Board
  •
  • NuMaker-HMI-M2354
