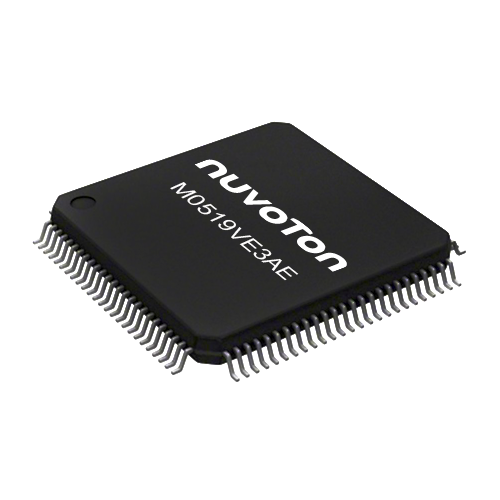

M0519VE3AE

The NuMicro^® M0519 series embedded with the ARM^® Cortex^®-M0 core runs up to 72 MHz with 128 Kbytes Flash program memory, 16 Kbytes SRAM, and 8 Kbytes Flash loader memory for In-System Programming (ISP) and In Application Program (IAP). The M0519 series is equipped with a variety of peripherals, such as GPIOs, Timers, Watchdog Timer (WDT), UART, SPI, I²C, 14 ch x 16-bit PWM,16 ch x 12-bit ADC, Analog Comparator, two sets OPAs, Low Voltage Reset, and Brown-out Detector.

Applications

• Auto-control, Industrial Control, Motor control, etc.

Key Features

• Core
  • ARM^® Cortex^®-M0 processor
  • Max frequency of 72 MHz
  • Operating voltage: 2.5V to 5.5V
  • Temperature range: -40℃ ~ 105℃
• Memory
  • 128KB flash for program memory
  • Provide 16KB SRAM
  • Configurable Data Flash
  • Support ISP (In-System Programming)
  • Support ICP (In-Circuit Programming)
  • Support IAP (In-Application Programming
• ADC
  • 2 sets of 12-bit ADCs, up to 16 channels
  • Up to 800KSPS
• PWM
  • Up to 14 channel PWM or 7 complementary paired PWM outputs
  • Period/duty trigger ADC function Connectivity
• Connectivity
  • Up to 3 SPIs (up to 36 MHz)
  • Up to 1 I²Cs (up to 400 kHz)
  • Up to 2 UARTs (up to 1 Mbps)
• Embedded Two OPAs
• Embedded Three Comparators
• Clock Control
  • 4 to 24 MHz crystal oscillator
  • Internal 22.1184 MHz (1% accuracy at 25℃, 5V)
