NuMaker-M2354KJB

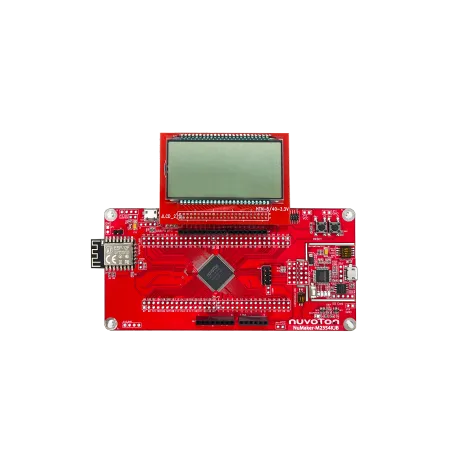

The NuMaker-M2354KJB is an evaluation board for Nuvoton NuMicro^® M2354 microcontrollers. The NuMaker-M2354KJB consists of two parts, a M2354 target board and an on-board Nu-Link2-Me debugger and programmer. The NuMaker-M2354KJB is designed for secure evaluation, prototype development and validation with power consumption monitoring function.

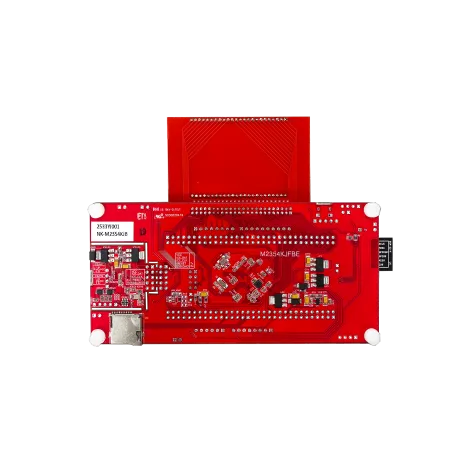

The M2354 target board is based on NuMicro M2354KJFBE. For the development flexibility, the M2354 target board provides the extension connectors of M2354KJFBE, the Arduino UNO compatible headers and is able to adopt multiple power supply by external power connectors. Furthermore, the Nuvoton-designed ammeter connector can measure the power consumption instantly, which is essential for the prototype evaluation. The M2354 target board also has Wi-Fi connectivity on board and LCD display panel (COM/SEG) for quick development.

In addition, there is an attached on-board debugger and programmer “Nu-Link2-Me”. The Nu-Link2-Me supports on-chip debugging, online and offline ICP programming via SWD interface. The Nu-Link2-Me supports virtual COM (VCOM) port for printing debug messages on PC. Besides, the programming status could be shown on the built-in LEDs. Lastly, the Nu-Link2-Me could be detached from the evaluation board and become a stand-alone mass production programmer.
