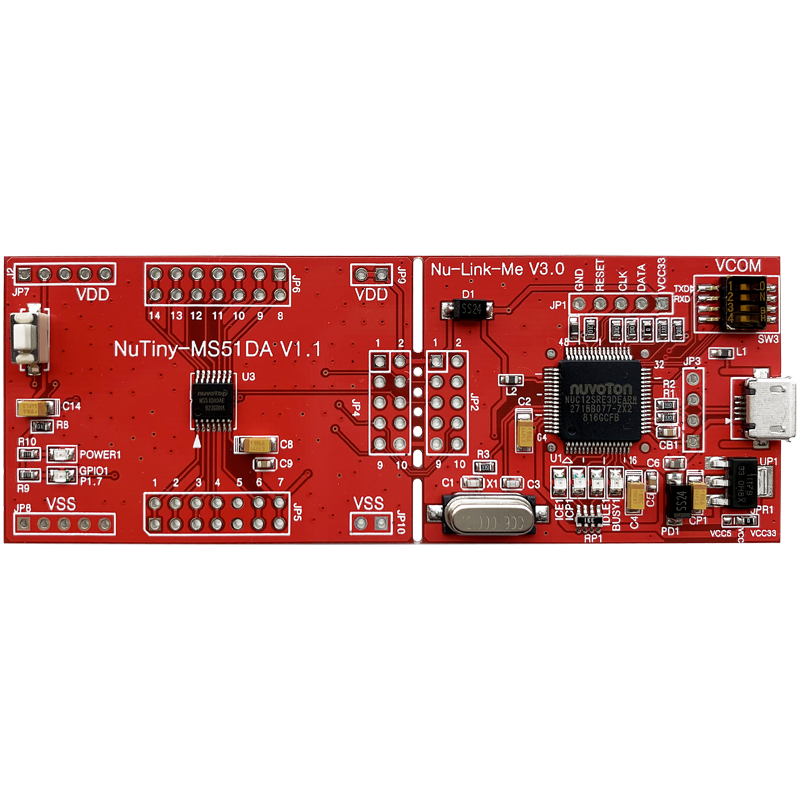

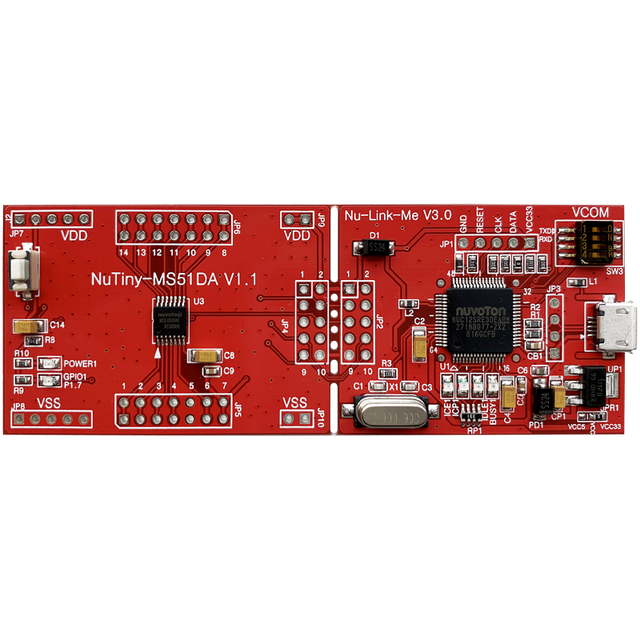

NuTiny-MS51DA

Board Introduction

The NuTiny- MS51FB development board consists of two parts, a NuMicro^® 8051 MS51FB9AE platform and an on-board Nu-Link-Me debugger and programmer. The NuTiny- MS51FB allows users to quickly develop and easily program and debug application.

The NuTiny- MS51FB offers MS51FB9AE full pins extension connectors and diversified power supply option. It is an easy-to-develop platform for user to expand the functionality and build the applications.

The Nu-Link-Me is a debugger and programmer that supports on-line programming and debugging through SWD interface. Additionally, the Nu-Link-Me provides virtual COM port ( VCOM ) function to print out messages on PC.

Board Feature

• NuMicro^® 8051 MS51DA9AE used as main microcontroller with function downward compatible with:
• MS51BA9AE
• MS51DA9AE full pins extension connectors
• Fixable board power supply
  • External V_DD power connector
  • ICE USB connector on Nu-Link-Me
• On-board Nu-Link-Me debugger and programmer
  • On-line program and debug through SWD interface
  • Virtual COM port function

Technical Documents

• Board Feature: MS51DA9AE
• NuMicro^® 8051 MS51DA9AE used as main microcontroller with fu: MS51BA9AE
• For more information and quick start guide, please visit the board page of: company website
