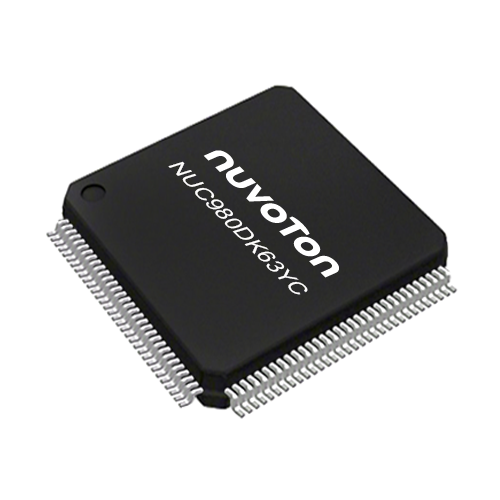

NUC980DK63YC

The NUC980DK63YC series with the ARM926EJ-S core can operate at up to 300 MHz . It offers 128-pin LQFP packages stacked with 64 MB DDR-II Memory to reduce PCB size and EMI issues. Rich peripherals include 10 sets of UART , 2 sets SDIO / eMMC interface, 8 Ports USB Host, NAND Flash interface, QSPI NAND ,4 sets CAN, 2 sets 10 / 100 Mbps Ethernet MAC and High-Speed USB 2.0 host / device controller to allow more flexibility in designs. The NUC980DK61YC also supports industrial temperature from - 40 ℃ to 85 ℃ and targets Ethernet and IoT Control.

Key Features

• Core
  • ARM926EJ-S core
  • Operates at up to 300 MHz
  • 16 KB I-cache / 16 KB D-cache
• DDR Memory
  • Built-in 64 MB DDR II Memory
• USB 2.0 High Speed Host/Device
  • Up 2 sets USB ports : one USB Host and one USB Host / Device
• 6 ports USB 1.1 Full Speed Host Lite
• System Boot
  • Boot from QSPI NAND, SPI Flash, NAND Flash, eMMC Flash, SD Card or USB Device
• 20-ch Peripheral DMA Controller
• External Bus Interface
• Video Input Interface
  • Supports up to 2 Sets CCIR656 / CCIR601 interface
  • Max resolution up to 3 M pixels
• SD Host Controller
  • 2 Ports SD Host
  • Supports SD / SDIO / eMMC
• ADC
  • Supports 12-bit 8 channels ADC
  • 600 k sps
• Cryptography Accelerator
  • ECC-256
  • AES-256
  • RSA-2048
  • SHA-512
  • HMAC
  • Random number generator
• Peripheral
  • Supports SPI / I²C / PWM / UART / CAN
