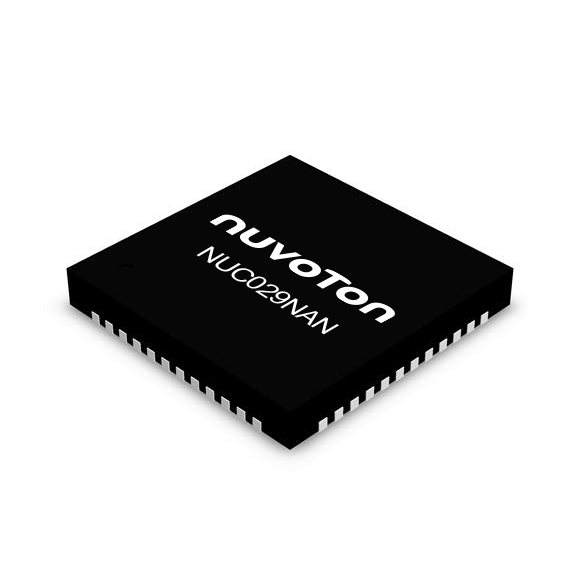

NUC029NAN

The NuMicro^® NUC029NAN is a 32-bit microcontroller with embedded Arm^® Cortex^®-M0 core for industrial control and applications which need rich communication interfaces. NUC029NAN can run up to 50 MHz , operate with 2.5V ~ 5.5V supply voltage, - 40°C ~ +85°C temperature range, has 64 KB flash, 4 KB ISP ROM and 4 KB SRAM . Many system level peripheral functions, such as up to 8 channels PWM , up to 8 channels 12-bit ADC , I/O port, Timer, UART , SPI , Watchdog Timer, and Brown-out Detector.

Applications

• LED Control, Industrial Control, Motor Control, etc.

Key Features

• Operating Characteristics
  • Voltage range: 2.5 V ~ 5.5 V
  • Temperature range: - 40°C ~ +85°C
• Core
  • Arm^® Cortex^®-M0 processor
  • Max frequency of 50 MHz
• Memories
  • 64 KB Flash for program memory
  • Provide 4 KB SRAM
  • 4 KB ISP ROM
  • Support ISP ( In-System Programming )
  • Support ICP ( In-Circuit Programming )
  • Support IAP ( In-Application-Program )
• Clocks
  • 4 ~ 24 MHz external crystal oscillator
  • Internal 22.1184 MHz oscillator
  • 10 kHz low-power oscillator for Watchdog Timer and wake-up in Sleep
• PWM
  • Up to 8 channel 16-bit PWM outputs
  • Support Capture interrupt
• ADC
  • Up to 8 channels
  • 12-bit resolution
  • Up to 760 kSPS
• Connectivity
  • Up to 2 SPI
  • Up to 2 I²C
  • Up to 2 UART
  • 16/8-bits EBI interface
• Package
  • QFN48 ( 7x7mm )
