NUC029FAE

The NuMicro^® NUC029FAE is a 32-bit microcontroller with embedded Arm^® Cortex^®-M0 core for industrial control and applications which need rich communication interfaces. NUC029FAE can run up to 24 MHz , operate with 2.5V ~ 5.5V supply voltage, - 40°C ~ +105°C temperature range, has 16 KB flash, 2 KB ISP ROM and 2 KB SRAM . Many system level peripheral functions, such as up to 3 channels PWM , up to 4 channels 10-bit ADC , I/O port, Timer, UART , SPI , Watchdog Timer, and Brown-out Detector.

Applications

• LED Control, Industrial Control, Motor Control, etc.

Key Features

• Operating Characteristics
  • Voltage range: 2.5 V ~ 5.5 V
  • Temperature range: - 40°C ~ +105°C
• Core
  • Arm^® Cortex^®-M0 processor
  • Max frequency of 24 MHz
• Memories
  • 16 KB Flash for program memory
  • Provide 2 KB SRAM
  • 2 KB ISP ROM
  • Support ISP ( In-System Programming )
  • Support ICP ( In-Circuit Programming )
  • Support IAP ( In-Application-Program )
• Clocks
  • 4 ~ 24 MHz external crystal oscillator
  • Internal 22.1184 MHz oscillator, dynamically calibrating the HIRC OSC to 22.1184 MHz ± 3 % from - 40 ℃ ~ +105 ℃ by external 32.768 kHz crystal oscillator ( LXT )
  • 10 kHz low-power oscillator for Watchdog Timer and wake-up in Sleep
  • 32.768 kHz external crystal input ( LXT ) for Power-down wake-up and system operation clock
• PWM
  • Up to 3 channel 16-bit PWM outputs
  • Support Capture interrupt
• ADC
  • Up to 4 channels
  • 10-bit resolution
  • Up to 300 kSPS
• Connectivity
  • Up to 1 SPI
  • Up to 1 I²C
  • Up to 1 UART
• Package

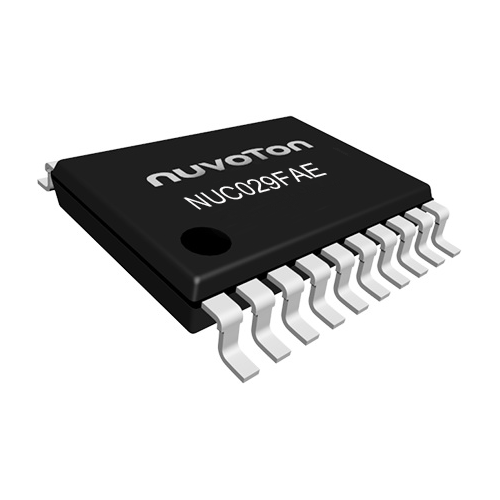

  • TSSOP20 ( 4.4x6.5mm )
