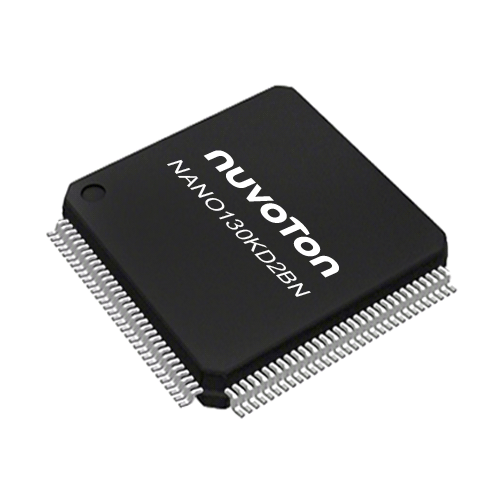

NANO130KD2BN

The NuMicro^® Nano130 series embedded with the ARM^® Cortex^®-M0 core runs up to 42 MHz with 32K/64K/128K bytes embedded Flash and 8K/16K bytes embedded SRAM and 4K bytes Flash loader memory for In System Programming (ISP) . The Nano130 series integrates LCD Controller 4x40 & 6x38 COM/SEG, USB 2.0 FS, Real Time Counter (RTC) , 12-bit SAR ADC, 12-bit DAC, UART, SPI, I²C, I²S, PWM/Capture, ISO-7816-3, Watchdog Timer, Brown-out Detector, and fast wake-up via many interfaces, and supports 96-bit Unique ID and 128-bit Unique Customer ID.

Applications

• Wearable Device, Portable Medical Device, Portable GPS Watch, etc.

Key Features

• Core
  • Cortex^®-M0 processor
  • Max frequency of 42 MHz
  • Operating voltage: 1.8V to 3.6V
  • Temperature range: -40℃ ~ 85℃
• Ultra-Low Power Consumption
  • 200 uA/MHz (Normal)
  • 75 uA/MHz (Idle)
  • 2.5 uA (Power down, RTC on, RAM retention)
  • 1 uA (Power down, RAM retention)
  • Fast wake-up: less than 3.5 us
• Memory
  • 32 KB of Flash Memory
  • 8 KB of SRAM
  • Configurable Data Flash
  • ISP (In-System Programming)
  • ICP (In-Circuit Programming)
• ADC
  • Up to 8 channels
  • 12-bit resolution
  • Up to 2 MSPS conversion rate
  • ±1℃ accurate temperature sensor
• DAC
  • Two DACs
  • 12-bit resolution
  • Up to 400 KSPS conversion rate
• PWM
  • Up to 8 channel PWM or 4 complementary paired PWM outputs
  • Period/duty trigger ADC function
• LCD Controller
  • 4x40 & 6x38 COM/SEG LCD
• Connectivity
  • USB 2.0 FS
  • Up to three SPIs (up to 32 MHz)
  • Up to two I²Cs (up to 1 MHz)
  • Up to five UARTs (two up to 1 Mbps)
  • Up to three ISO-7816-3 for smart card application
  • One I²S Interface
  • 8/16 bits EBI interface
• Clock Control
  • 4 to 24 MHz crystal oscillator
  • Internal 12 MHz (1% accuracy)
  • Internal 10 kHz OSC for low power system operation
