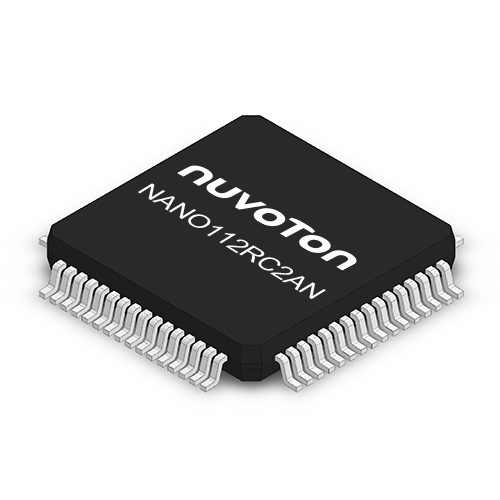

NANO112RC2AN

The NuMicro^® Nano112 series embedded with the ARM^®Cortex^®-M0 core runs up to 32 MHz with 16K/32K bytes embedded Flash and 4K/8K bytes embedded SRAM and 4K bytes Flash loader memory for In System Programming (ISP) . The Nano112 series integrates 4x36 & 6x34 COM/SEG LCD controller. Real Time Counter (RTC) , 12-bit SAR ADC, UART, SPI, I²C, PWM/Capture, Comparator, ISO-7816-3, Watchdog Timer (WDT), Brown-out Detector, and fast wake-up via all peripheral interfaces, and supports 96-bit Unique ID and 128-bit Unique Customer ID..

Applications

• Wearable Device, Portable Medical Device, Smart Home Appliances, Smart (Water, Gas, Heat) meter, etc.

Key Features

• Core
  • Cortex^®-M0 processor
  • Max frequency of 32 MHz
  • Operating voltage: 1.8V to 3.6V
  • Temperature range: -40℃ ~ 85℃
• Ultra-Low Power Consumption
  • 150 uA/MHz (Normal)
  • 65 uA/MHz (Idle)
  • 1.5 uA (Power down, RTC on, RAM retention)
  • 0.65 uA (Power down, RAM retention)
  • Fast wake-up: less than 3.5 us
• Memory
  • 16 KB of Flash Memory
  • 4 KB of SRAM
  • Configurable Data Flash
  • ISP (In-System Programming)
  • ICP (In-Circuit Programming)
• ADC
  • Up to 7 channels
  • 12-bit resolution
  • Up to 1.5 MSPS conversion rate
  • ±1℃ accurate temperature sensor
• Comparator
  • Two
• PWM
  • Up to 4 channel PWM or 2 complementary paired PWM outputs
  • Period/duty trigger ADC function
• LCD Controller
  • 4x20 & 6x18 COM/SEG LCD
• Connectivity
  • Up to two SPIs (up to 32 MHz)
  • Up to two I²Cs (up to 1 MHz)
  • Up to four UARTs (two up to 1 Mbps)
  • Up to two ISO-7816-3 for smart card application
• Clock Control
  • 4 to 24 MHz crystal oscillator
  • Internal 12 MHz / 16MHz (1% accuracy)
  • Internal 10 kHz OSC for low power system operation
