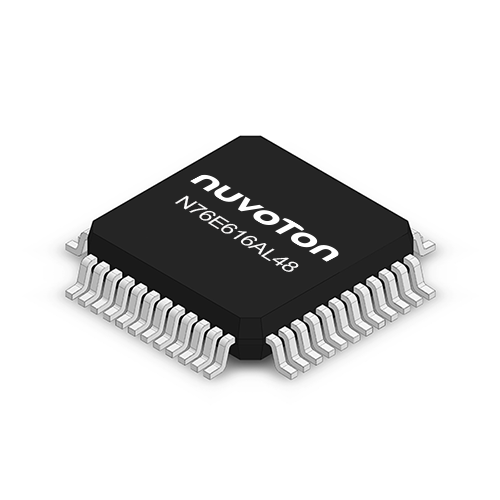

N76E616AL48

The N76E616 is a high speed 1T-8051 MCU with a built-in LCD driver, which is operating at 2.4V ~ 5.5V and -40℃ ~ 105℃.The N76E616 provides 11.059 MHz internal oscillator, Data Flash configurable and high immunity (ESD HBM 8KV, MM 400V/EFT 4KV). The package type is LQFP48.

Applications

• Industrial Control, Home Appliance, Instrumental Meter, Thermostat, Power Manager, etc.

Key Features

• Core
  • 1T 8051 processor
  • Max frequency of 16 MHz
  • Operating voltage: 2.4V to 5.5V
  • Operating temperature: -40 ℃ ~+105 ℃
• Memory
  • 18 KB Flash for program memory
  • 512B SRAM
  • Data Flash Configurable
  • ISP (In-System Programming)
  • ICP (In-Circuit Programming)
  • IAP (In-Application Programming)
• ADC
  • 8 channels
  • 10-bit resolution
  • Up to 150 kSPS
• LCD driver
• 3x32, 4x32 and 6x30 COM/SEG LCD
• Connectivity
  • One I²C Interface (up to 400 kHz)
  • Two UARTs
• Clock Control
  • 2 to 16 MHz crystal oscillator
  • Internal 11.059 MHz (5% accuracy at -40~105℃)
  • 32.768kHz crystal oscillator
