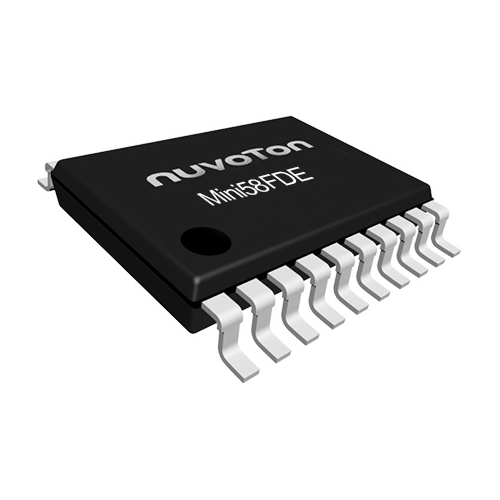

MINI58FDE

The NuMicro^® Mini58 series embedded with the ARM^® Cortex^®-M0 core runs up to 50 MHz with 32 Kbytes Flash program memory, 4 Kbytes SRAM and 2 Kbytes Flash loader memory for In-System Programming (ISP). The Mini58 series is equipped with a variety of peripherals, such as GPIOs, Timers, UART, SPI, I²C, PWM, ADC, Comparator, Watchdog Timer (WDT), Low Voltage Reset, Brown-out Detected Reset, and supports 96-bit Unique ID and 128-bit Unique Customer ID.

Applications

• Consumer , Industrial Control, Communication System, etc.

Key Features

• Core
  • Cortex-M0 processor
  • Max frequency of 50 MHz
  • Operating voltage: 2.5V to 5.5V
  • Temperature range: -40℃ ~ 105℃
• Memory
  • 32 KB flash for program memory
  • Provide 4KB SRAM
  • Data Flash configurable
  • Support ISP (In-System Programming)
  • Support ICP (In-Circuit Programming)
  • Support IAP (In-Application Programming)
• ADC
  • Up to 4 channels
  • 10-bit resolution
• PWM
  • Up to 6-channel PWM, or 3 complementary paired PWM outputs
  • Period/duty trigger ADC function
• Connectivity
  • One SPI (up to 36 MHz)
  • Up to two I²C (up to 400 kHz)
  • Up to two UART (up to 1 Mbps)
• Clock Control
  • 4 to 24 MHz crystal oscillator
  • Internal 22.1184 MHz (±1% accuracy at 25℃, 5V)
