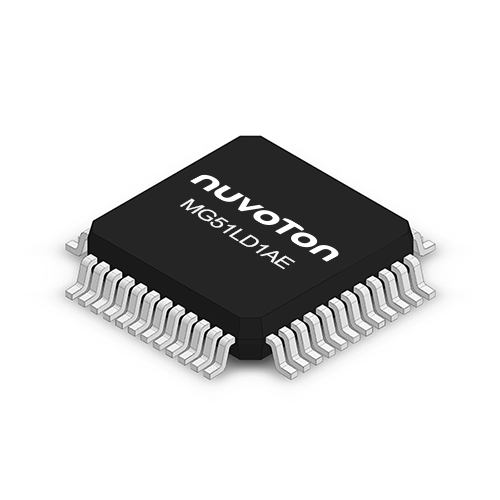

MG51LD1AE

• Flash Memory/
• SRAM (Kbytes)
• 32K/4K
  • MG51EC1AE
  • MG51PD1AE: MG51PC1AE
  • MG51TD1AE: MG51TC1AE
  • MG51LD1AE: MG51LC1AE
• 32K/1K
  • MG51FC9AE
  • MG51XC9AE
• 16K/1K
  • MG51FB9AE
  • MG51XB9AE
• Package
  • TSSOP20
  • QFN20
  • TSSOP28
  • MG51PD1AE: LQFP32
  • MG51TD1AE: QFN33
  • MG51LD1AE: LQFP48

The NuMicro^® MG51 series is an embedded Flash Memory type 1T 8051-based microcontroller. The instruction set is fully compatible with the standard 80C51 and performance enhanced. It supports 16 / 24 MHz core speed and features up to 64 KB of Flash Memory, 256 bytes of RAM and 4 KB of auxiliary RAM (XRAM), 4 KB of Flash loader memory (LDROM), 2.4V to 5.5V operating voltage, and -40°C to +105°C operating temperature.

The MG51 series also provides plenty of peripherals including four 16-bit Timers, two UARTs with frame error detection and automatic address recognition, three ISO 7816-3 interfaces, one SPI, one I²C, 12 channels of PWM, and 15-channel 12-bit 500 ksps ADC with continuous mode. The peripherals are equipped with 24 sources with 4-level-priority interrupts capability.

Supported packages include TSSOP 20-pin, QFN 20-pin, TSSOP 28-pin, LQFP 32-pin, QFN- 33-pin and LQFP 48-pin.

For the development, Nuvoton provides the NuMaker evaluation board and Nuvoton Nu-Link debugger. The 3rd Party IDE such as Keil C51, IAR EW8051, and NuEclipse SDCC compilers are also supported.

Applications

• Home appliances
• LED lighting controls
• Motor controls
• Industrial automation

Key Features

• Operating Characteristics
  • Operating Voltage: 2.4 V to 5.5 V
  • Temperature range: -40°C to +105°C
  • EFT 4.4 kV
  • ESD HBM 7 kV
• Core
  • Fully static design 8-bit high performance 1T 8051-based CMOS microcontroller, running up to 24 MHz
  • Instruction set fully compatible with MCS-51
  • 4-priority-level interrupts capability
  • Dual Data Pointers (DPTRs)
• Memory
  • Up to 64 KB Flash Memory
  • 256 bytes on-chip RAM and 4 KB auxiliary RAM (XRAM)
  • 4 KB Flash Memory for user program loader (LDROM)
  • 128 bytes security protection ROM (SPROM)
• Clocks
  • Default 16 MHz high-speed internal oscillator (HIRC) with selectable 24 MHz core speed, trimmed to ±1% (accuracy at 25°C, 2.4V to 5.5V), ±2% in -20°C to +105°C
  • 10 kHz low-speed internal oscillator (LIRC) calibrating to ±1% by software from high-speed internal oscillator
• Power Management
  • POR with 1.15V threshold voltage level
  • Supports BOD (4.4V / 3.7V / 2.7V / 2.2V falling edge)
  • LVR with 2.0V threshold voltage level
• Timer
  • Four 16-bit timers
  • 12 channels of pulse width modulator (PWM) output, with Fault Brake function
  • One dedicated Self Wake-up Timer (WKT) for self-timed wake-up for low-power modes
  • One programmable Watchdog Timer (WDT) clocked by dedicated 10 kHz internal source
• Communication Interface
  • Two UART interfaces
  • One I²C interface supporting Master / Slave mode with up to 400 kbps transmission rate
  • One SPI supporting Master / Slave mode
  • Up to three ISO7816-3 interfaces support UART function
• Analog
  • Up to 15 single-end channels of 12-bit 500 ksps SAR ADC
• Up to 46 I/Os with interrupt capability
  • Schmitt trigger input / TTL mode selectable
  • I/O all supports interrupt capability
  • Supports INT0 / INT1 interrupt pins
  • Supports wake-up function
• 96-bit Unique ID (UID)
• 128-bit Unique Customer ID (UCID)
• Package
  • Package is Halogen-free, RoHS-compliant and TSCA-compliant.
• Pin Count
  • 20
  • 20
  • 28
  • 32
  • 33
  • 48
• Type
  • TSSOP
  • QFN
  • TSSOP
  • LQFP
  • QFN
  • LQFP
• I/O Pin
  • 18
  • 18
  • 26
  • 30
  • 30
  • 46
• Lead Pitch
  • 0.65
  • 0.4
  • 0.65
  • 0.8
  • 0.4
  • 0.5
• Dimensions (mm)
  • 4.4x6.5
  • 3x3
  • 4.4x9.7
  • 7x7
  • 4x4
  • 7x7
• Evaluation Board
• EVB Part No.: Supported Devices
• NuMaker-MG51FC: MG51FB9AE, MG51FC9AE, MG51XB9AE, MG51XC9AE
• NuMaker-MG51LD: MG51EC1AE, MG51TC1AE, MG51PC1AE, MG51LC1AE, MG51TD1AE, MG51PD1AE, MG51LD1AE
