Magic Board

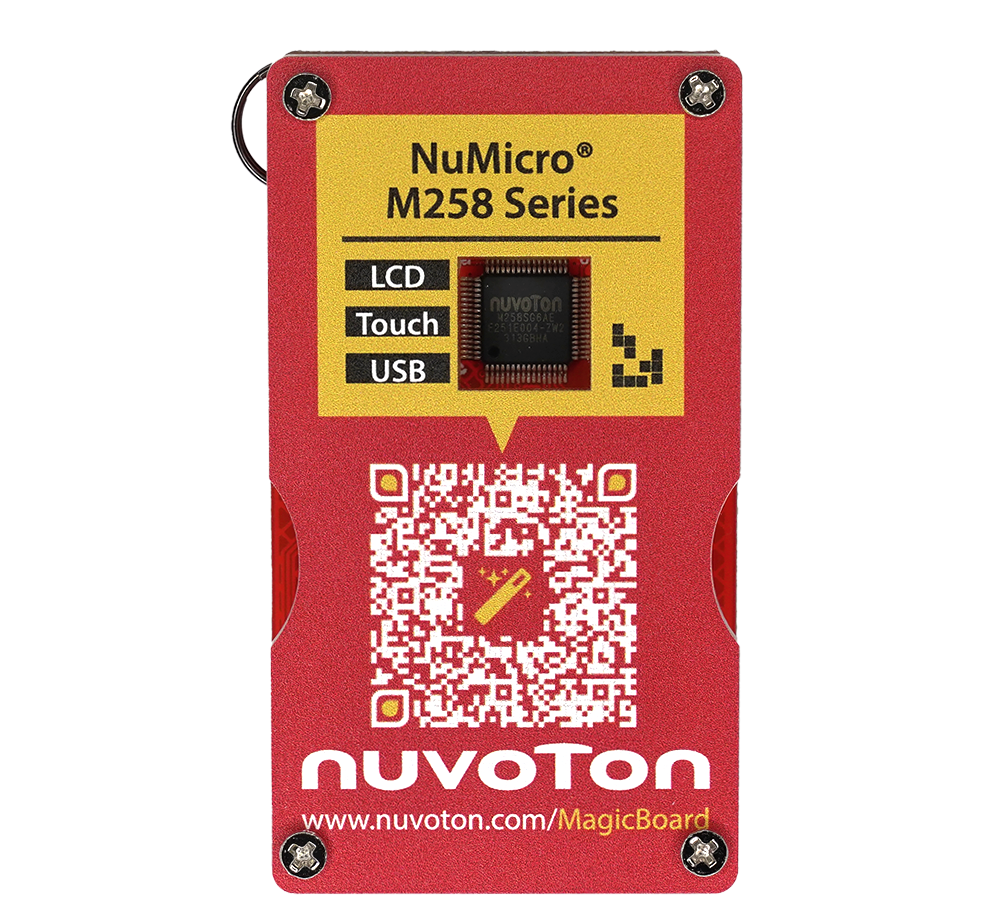

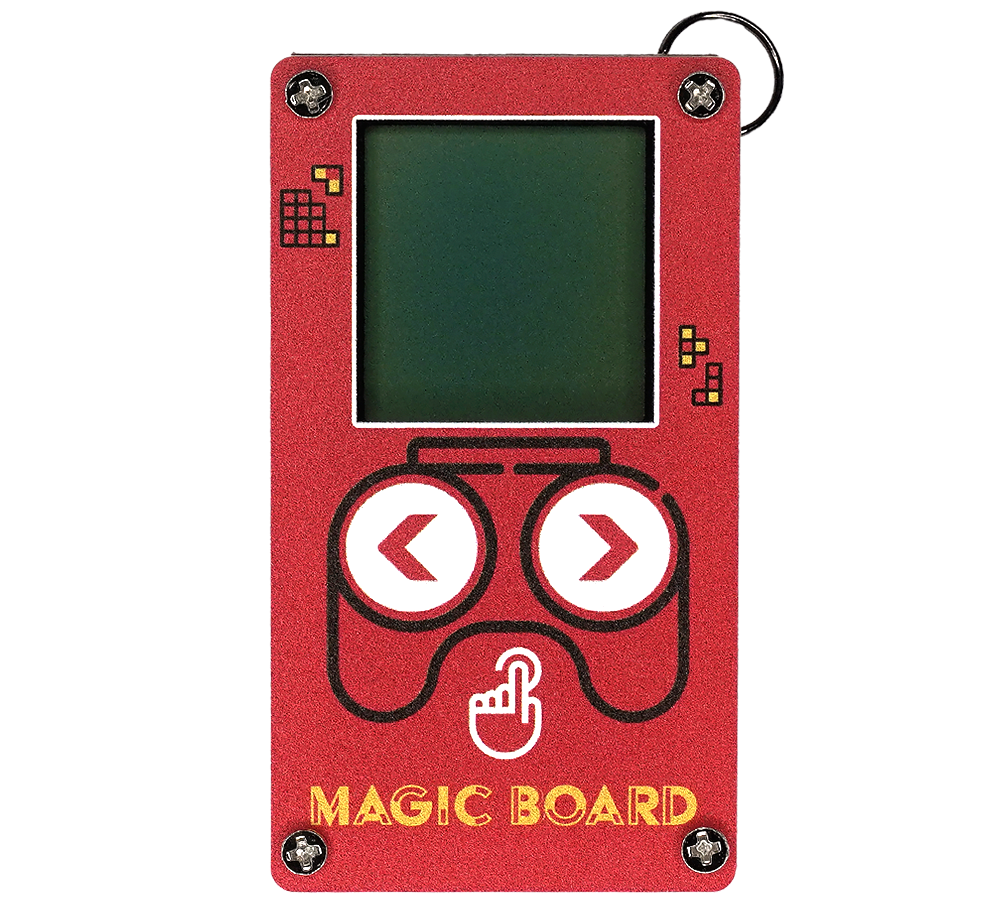

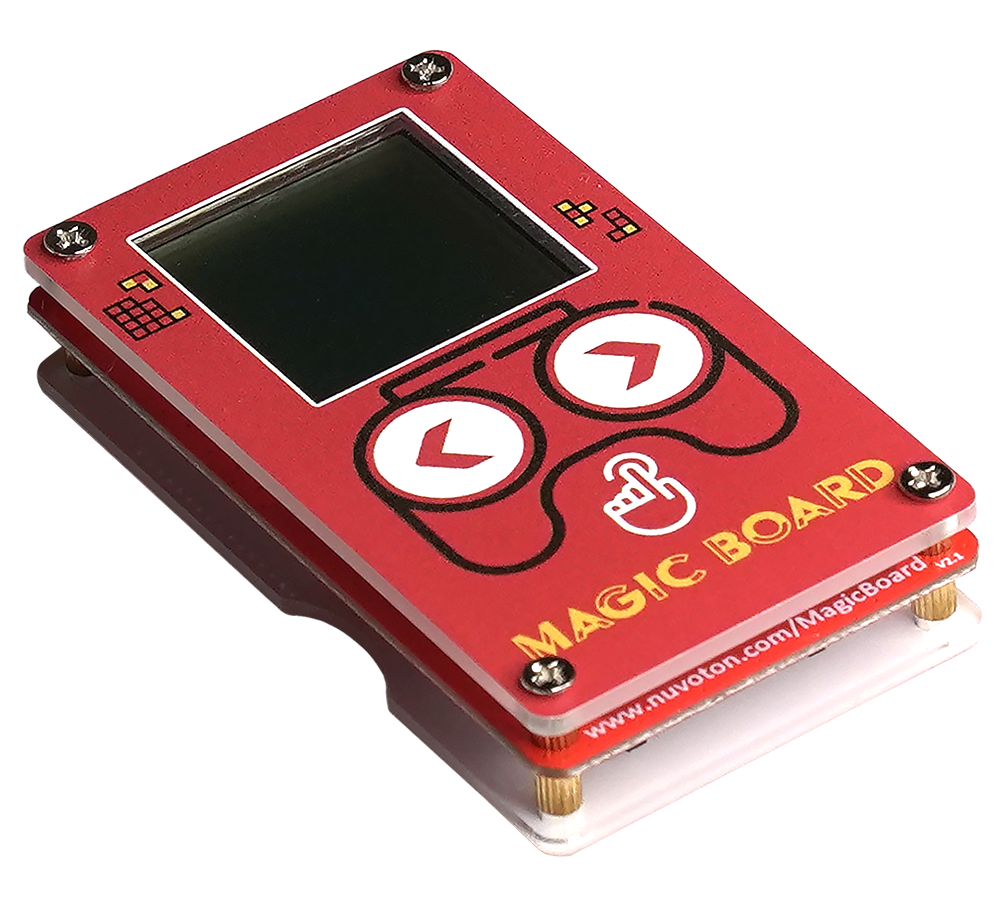

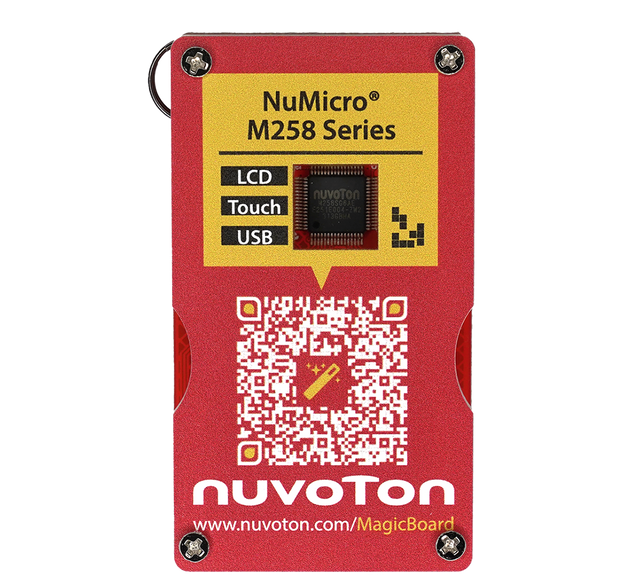

The Magic Board is a portable MCU playground, unleashing your creativity by downloading source code to create your own Magic. The Magic Board consists of three parts: an 8 x 24 COM/SEG TN-LCD panel board, a USB Type-C port and 3 capacitive touch keys. This unique blend of features positions the Magic Board as the optimal choice for creating compact and visually immersive systems.

Magic Board Features:

• All Packed into a Remarkably Small Form Factor
  • a built-in 8 COM * 24 SEG LCD
  • 3 capacitive Touch Keys
  • a USB Type-C port
• NuDeveloper Ecosystem
  • Firmware updating for ISP programming via USB HID protocol.
  • Open-source code available for download, allowing for customization and modification.

Additionally, the microcontroller used in the Magic Board is Nuvoton NuMicro^® M258SE3AE, which is based on the Arm^® Cortex^®-M23 core. For more information about this 32-bit MCU, please refer to the NuMicro^® M254/M256/M258 Low Power LCD Series.

Technical Documents

• For more details, please visit Nuvoton Official Website: GO
• Magic Board: M254/M256/M258 Low Power LCD Series
