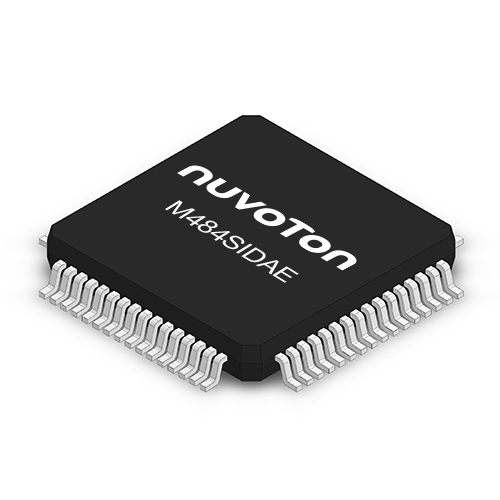

M484SIDAE

The M484SIDAE is a high performance, low power microcontroller powered by the Arm^® Cortex^®-M4F core with DSP extension. It can run up to 192 MHz with 175 µA/MHz dynamic low power consumption. The 512 KB embedded dual bank Flash memory supports OTA (Over-The-Air) firmware upgrade, and the 160 KB embedded SRAM includes 32 KB cache to speed up external SPI Flash code execution. The factory pre-loaded bootloader delivers Secure Boot functionality to provide the code integrity check in embedded Flash memory. The built-in Secure Protection ROM provides a safe space for saving confidential program or data. One-Time Programmable ROM is also included for product life-cycle management.

The M484SIDAE supports operating voltage from 1.8V to 3.6V, and industrial operating temperature from -40°C to 105°C. It is integrated with 2 sets of USB 2.0 interface with op-chip full speed and high speed OTG PHY. Package type is LQFP64.

Applications

• USB Adapter, USB Sensor Hub, etc.

Key Features

• Core
  • Up to 192 MHz Arm^® Cortex ^®-M4F delivering 1.25 DMIPS per MHz
  • DSP instruction set
  • Memory Protection Unit (MPU)
• Memory
  • 512 KB zero-wait state Flash memory
  • 160 KB RAM, including 32 KB external SPI Flash cache
  • 4 KB Secure Protection ROM
  • 2 KB One-Time-Programmable ROM
• Cyclic Redundancy Calculation Unit
• 16-ch Peripheral DMA Controller
• External Bus Interface
  • LCD parallel interface, i80 mode
• Clocks
  • 4 to 24 MHz crystal oscillator
  • 32 kHz oscillator for RTC
  • Internal 12 MHz RC oscillator
  • Internal 10 kHz RC oscillator
  • Internal PLL up to 480 MHz
• RTC
  • 80 bytes of battery-powered backup registers
• Timer & PWM
  • Four 32-bit timers
  • Twelve Enhanced PWM with twelve 16-bit timers
  • Twelve Basic PWM with two 16-bit timers
  • One 24-bit count-down SysTick timer
  • One watchdog timer
  • One window watchdog timer
• Analog Peripheral
  • One 12-bit, up to 16-ch 5MSPS SAR ADC
  • Two 12-bit, 1 MSPS DAC
  • Two rail-to-rail comparators
  • Two operational amplifiers
• Communication Interface
  • Up to 6 low power UART interfaces (17 Mbps), including 2 LIN interfaces
  • Up to 3 ISO-7816 interfaces (3.4 MHz), supporting full duplex UART mode
  • Three I²C interfaces (Up to 3.4 Mbps)
  • One SPI Flash interface (Up to 96 MHz) supports quad mode
  • One Quad-SPI interface (Up to 96 MHz)
  • Up to 4 SPI/ I²S interfaces (SPI up to 96 MHz, I²S up to 192 kHz/16-bit)
  • One I²S interface (192 kHz/32-bit)
  • Two USCI interfaces, supporting configurable UART/ SPI/ I²C
  • Two Secure Digital Host Controllers (50 MHz)
• Control Interface
  • Two quadrature encoder interfaces
  • One 24-bit, 3-ch input capture timer/counter units
• Advanced Connectivity
  • USB 2.0 high speed device/ host/ OTG controller with on-chip PHY
• Operating Characteristic
  • Voltage range: 1.8V to 3.6V
  • Temperature range: -40°C to +105°C
