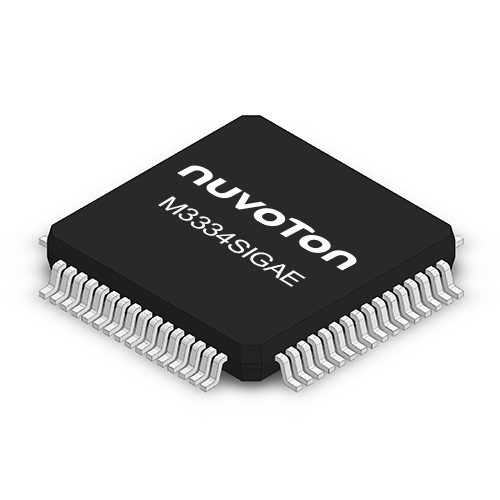

M3334SIGAE

The NuMicro^® M3334SIGAE is a 32-bit microcontroller powered by the Arm^® Cortex^®-M33 core. It integrates TrustZone^® technology, a DSP instruction set, and a Floating-Point Unit (FPU). Designed for high-performance applications, it targets industrial control, smart factories, smart buildings, renewable energy, and consumer electronics. Operating at up to 180 MHz, the M3334SIGAE supports 1.7V to 3.6V operating voltage and -40°C to +105°C wide operating temperature. It offers LQFP64 package and superior reliability, featuring high immunity with ESD HBM 4 kV and EFT 4.4 kV ratings.

Key Features

• Operating Characteristics
  • Voltage range: 1.7V to 3.6V
  • Temperature range: -40°C to +105°C
  • ESD HBM 4 kV
  • EFT 4.4 kV
• Core
  • ARM^® Cortex^®-M33 core with TrustZone^®, frequency up to 180 MHz
  • DSP instruction set
  • Single-precision floating point unit (FPU)
  • Memory Protection Unit (MPU) with eight memory regions
• Memories
  • Up to 512 KB Flash memory, single bank
  • Flash memory with error correction code (ECC)
  • 8 KB user-defined loader (LDROM)
  • Up to 320 KB SRAM including hardware parity check 64 KB
• Clocks
  • 4 to 32 MHz crystal oscillator (HXT)
  • 768 kHz crystal oscillator (LXT) for RTC
  • Internal 48 MHz RC oscillator with ± 3% deviation at -40°C to +105°C
  • Internal 38.4 kHz RC oscillator with +/- 2.5% deviation
  • Internal PLL up to 180 MHzz
• Power management
  • Normal run: 91 μA/MHz at 25°C/3.3V (all peripherals disabled)
  • Normal power-down 2 (NPD2): 190 μA at 25°C/3.3V (all peripherals disabled)
  • Standby power-down (SPD) w/o SRAM retention: 4.93 μA at 25°C/3.3V (all peripherals disabled)
  • Deep power-down (DPD): 0.62 μA at 25°C/3.3V (all peripherals disabled)
• Timers & Control Peripherals
  • Four 32-bit timers
  • Up to 12 enhanced PWM (EPWM) channels
  • Up to 33 basic PWM (BPWM) channels
  • One 24-bit SysTick timer
  • One Watchdog Timer (WDT)
  • One Window Watchdog Timer (WWDT)
  • One Enhanced Quadrature Encoder Interface (EQEI)
  • One Enhanced Input Capture Unit (ECAP)
• Peripheral Direct Memory Access (PDMA)
  • 16-channel Peripheral Direct Memory Access (PDMA)
  • Channel can be operated by software trigger, UART, SPI, EPWM, TIMER, ADC, ACMP, USB, USCI, QSPI, EINT, I²S and I²C
• Analog Peripherals
  • One 12-bit SAR ADC with up to 16 channels and 4.2 Msps sampling rate
  • Two analog comparators
  • Built-in internal reference voltage including 1.6/2.0/2.5/3.0V
• Communication Interfaces
  • One I3C interface
  • One Enhanced LED Light Strip Interface (ELLSI)
  • Up to 10 LED Light Strip Interfaces (LLSI)
  • Up to two Universal Serial Control Interfaces (USCI), configurable as UART, SPI, or I²C
  • Up to five UART interfaces with IrDA support (UART0 supports LIN mode)
  • Up to three I²C interfaces with SMBus/PMBus support (up to 3.4 Mbps)
  • Up to three SPI/I²S interfaces (SPI up to 90 MHz in Master mode)
  • One Quad-SPI interface (up to 90 MHz in Master mode)
  • One I²S interface
  • Up to two CAN FD interfaces
  • One Secure Digital Host Controller (SDH)
• Advanced Connectivity
  • USB 2.0 high speed device/host/OTG controller with built-in transceiver
• External Memory Interface
  • External bus interface (EBI), i80 mode
• Security
  • Secure boot (root of trust, ROT)
  • Flash memory supporting up to four regions of Execute-Only-Memory (XOM)
• Up to 46 I/O pins with interrupt capability
• Development Platform Support
  • Arm Keil RVMDK, IAR EWARM IDE and VS Code
  • VS Code with support for Arm Compiler and GNU C Compiler
  • ICP (In Circuit Programmer) support for updating internal code via Nu-Link debugger
  • ISP (In System Programmer) support for updating code through UART, SPI, I²C, CAN FD, HSUSBD peripheral interfaces
  • NuTool-PinView for real time monitoring the status of all I/O pins
  • NuTool-PinConfigure for pin assignment, initial code generation and OrCAD/Protel part generation
• 96-bit Unique ID (UID)
• 128-bit Unique Customer ID (UCID)
• Package (RoHS)
  • LQFP 64, 7x7 mm
• Development Environment
  • Programming IDE: Keil MDK, IAR, VS Code
  • Software Package: Board Support Package (BSP), Sample Code
  • Development IDE: NuTool-PinView, NuTool-PinConfigure, NuTool-ClockConfigure, NuConsole
  • RTOS: FreeRTOS, Zephyr, RT-Thread
  • GUI Library: emWin, LVGL
• Evaluation Board

  • NuMaker-M3334KI: Support USB HS, Expand Connector, and Arduino Uno Interface

Technical Documents

• For more details, please visit Nuvoton Official Website: GO
