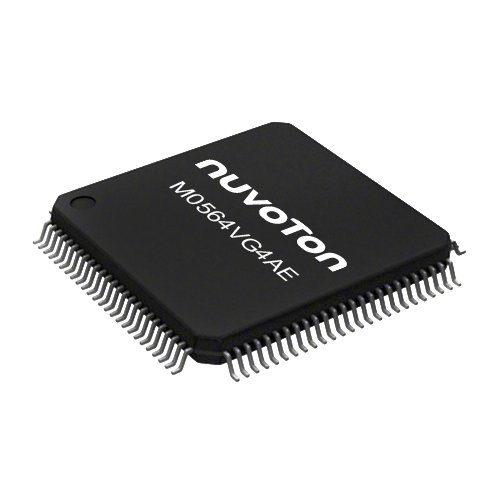

M0564VG4AE

The M0564VG4AE microcontroller based on the ARM^® Cortex^®-M0 core operates at up to 72 MHz. It features adjustable V_DDIO pins for specific I/O pins with a wide range of voltage from 1.8V to 5.5V for various operating voltages of external components, a unique high-speed PWM with clock frequency up to 144 MHz for precision control, and an integrated hardware divider to speed up the calculation for the control algorithms. Apart from that, the M0564VG4AE also integrates SPROM (Security Protection ROM) which provides a secure code execution area to protect the intelligent property of developers. TheM0564VG4AE is ideal for industrial control, motor control and metering applications.

The M0564VG4AE supports the wide voltage range from 2.5V to 5.5V and temperature ranging from -40℃ to 105℃, up to 256 Kbytes of Flash memory, 20 Kbytes of SRAM as well as 4 Kbytes of ISP (In-System Programming) ROM in 100-pin package. It supports high immunity of 8KV ESD (HBM)/4KV EFT. It is also equipped with plenty of peripherals such as timers, watchdog timers, RTC, PDMA, EBI, UART, smart card interface, SPI, I²S, I²C, GPIO, up to 12 channels of 16-bit PWM, up to 20 channels of 12-bit ADC, analog comparator, temperature sensor, LVR (Low Voltage Reset), BOD (Brown-out Detector), 96-bit UID (Unique Identification), and 128-bit UCID (Unique Customer Identification).

Applications

• Industrial Control, Motor Control, Metering Application, etc

Key Features

• Core
  • ARM Cortex^®-M0
  • Max frequency up to 72 MHz
  • Operating voltage: 2.5V to 5.5V
  • Operating temperature: -40℃ to 105℃
• Memory
  • 128 KB Flash
  • 20 KB SRAM
  • Independent 4KB ISP ROM
  • 2 KBSPROM(Security Protection ROM)
  • Supports program update by:
  • ISP (In-System Programming)
  • ICP (In-Circuit Programming)
  • IAP (In-Application Programming)
• ADC
  • Supports 12-bit SAR ADC of up to 10 channels
  • Conversion rate up to 800K SPS at 5V
• PWM(Pulse Width Modulation)
  • Supports maximum clock frequency up to 144 MHz
  • Supports 16-bit resolution PWM counter
  • Up to 12 channel PWM outputs or 6 complementary paired PWM outputs
  • Period/duty trigger ADC function
• Connectivity
  • Up to 3 sets of USCI
  • (Configured as UART or SPI or I²C)
  • Up to 3 sets of UART
  • Up to 2 sets of SPI[I²S], (Configured as SPI or I²S)
  • Up to 2 sets of SC[UART], (Configured as SC or UART)
  • Up to 2 sets of I²C
  • -16/8-bits EBI interface
• Clock Control
  • 48 MHz internal RC (HIRC48)
  • 10 KHz internal RC (LIRC)
  • 22.1184 MHz internal RC oscillator
  • (HIRC, 1% accuracy at 25℃, 5V)
  • 32.768 KHz external crystal (LXT)
  • 4 to 24 MHz external crystal oscillator (HXT)
• Supports independent V_BAT pin for RTC
