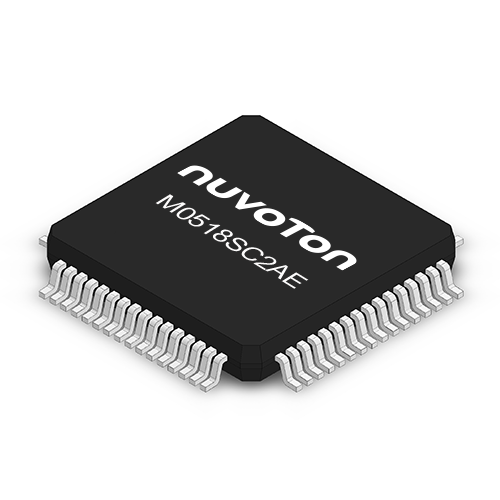

M0518SC2AE

M0518 series is a 32-bit microcontroller with embedded ARM^® Cortex^™-M0 core for industrial control and applications which need rich communication interfaces. M0518 series MCU can run up to 50MHz, has 64-byte flash, 4K-byte data flash, 4K-byte flash for the ISP, and 8K-byte SRAM. Many system level peripheral functions, such as PWM up to 24 channels, I/O port, Timer, 6 sets UART, SPI, PWM, ADC, Watchdog Timer, and Brown-out Detector.

Applications

• LED Control, Industrial Control, Motor Control, etc.

Key Features

• Core
  • Cortex^®-M0 processor
  • Max frequency of 50 MHz
  • Operating voltage: 2.5V to 5.5V
  • Temperature range: -40℃ ~ 105℃
• Memory
  • 36 KB flash for program memory
  • Provide 8KB SRAM
  • Configurable Data Flash
  • Support ISP (In-System Programming)
  • Support ICP (In-Circuit Programming)
• ADC
  • Up to 8 channels
  • 12-bit resolution
  • Up to 1 MSPS
• PWM
  • Up to 24 channel PWM outputs or four complementary paired PWM outputs
  • Support Capture interrupt
• Connectivity
  • Up to 1 SPI (up to 36 MHz)
  • Up to 2 I²C (up to 400 kHz)
  • Up to 6 UART (up to 1 Mbps)
• Clock Control
  • 4 to 24 MHz external crystal oscillator
  • Internal 22.1184 MHz (1% accuracy at 25℃,5V)
• Package
  • LQFP64 (7x7mm)

Technical Documents

• For more details, please visit Nuvoton Official Website: GO
