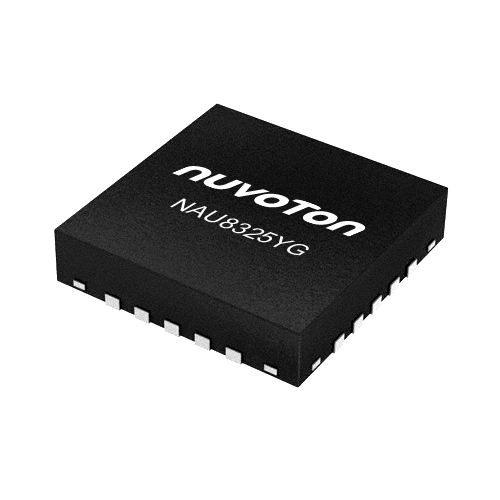

NAU8325YG

NAU8325YG is a highly efficient, filter-free, stereo Class-D audio amplifier, which is capable of driving a 4Ω load with up to 3.0W output power. This device provides I²C control and I²S audio input with low standby current and fast start-up time.

The NAU8325YG is ideal for the portable applications of battery drive, as it has advanced features like 80dB PSRR, 90% efficiency, ultra-low quiescent current (i.e. 2.1mA at 3.7V for 2 channels) and superior EMI performance.

Applications

• Gaming Controllers
• Wireless (VR) Headset
• Notebooks / Tablet PCs
• Personal Media Players

Key Features

• Audio Input
  • Digital Audio Interface: I²S / PCM Input
  • Pin Selectable I²S Left or Right Channel selection
  • Pin Selectable PCM Time slot
  • Sampling Rates: 8K ~ 96KHz
  • 80dB PSRR@217Hz
• Audio Output
  • Powerful Stereo Class-D Amplifier
  • 2 ch x 3.0W (4Ω @ 5V, 10% THD+N)
  • 2 ch x 1.32W (4Ω @ 3.7V, 1% THD+N)
  • 2 ch x 1.72W (8Ω @ 5V, 10% THD+N)
  • 2 ch x 0.75W (8Ω @ 3.7V, 1% THD+N)
  • Low Output Noise: 18 μV_RMS @0dB gain
• Advance/Control Feature
  • I²C Control Interface
  • Gain Setting: 24dB ~ -62dB (plus mute)
  • Low Current Shutdown and Standby Modes
  • Click-and Pop Suppression
• Operating Characteristics
  • voltage range: 2.5 V to 5.5 V
  • Temperature range: -40°C to 85°C
  • Low Quiescent Current:
• 2.1mA at 3.7V for 2 ch
• 3.2mA at 5V for 2 ch
• Package
  • QFN-20 (4x4mm)

Technical Documents

• For more details, please visit Nuvoton Official Website: GO
