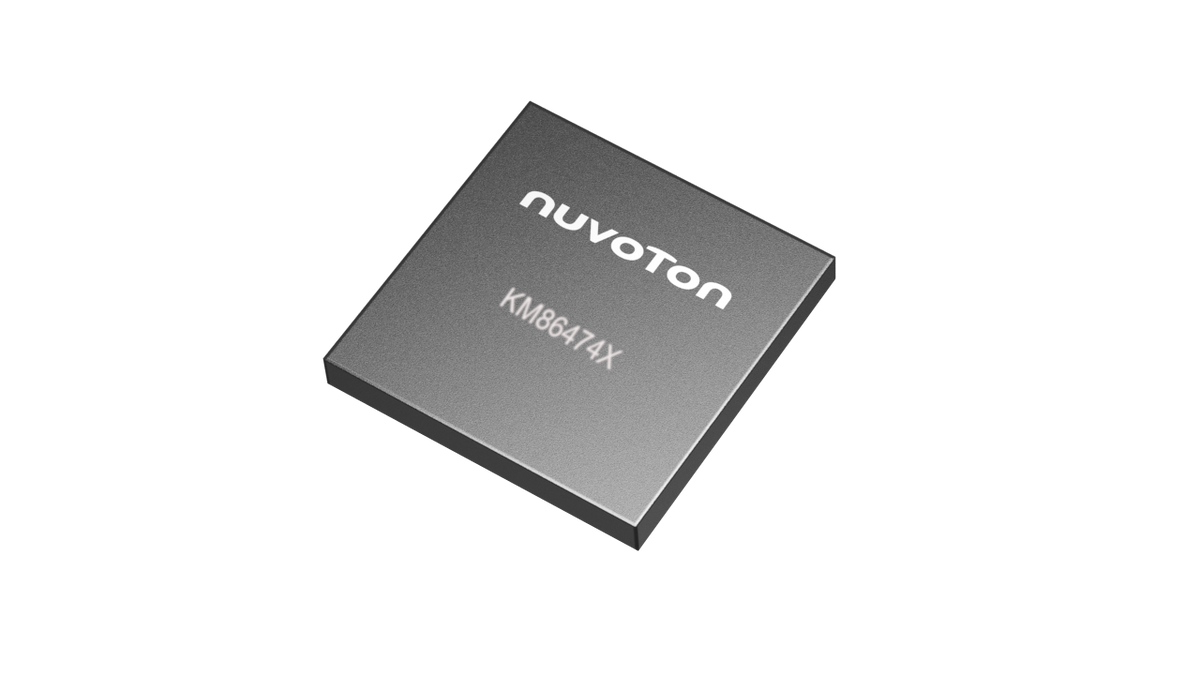

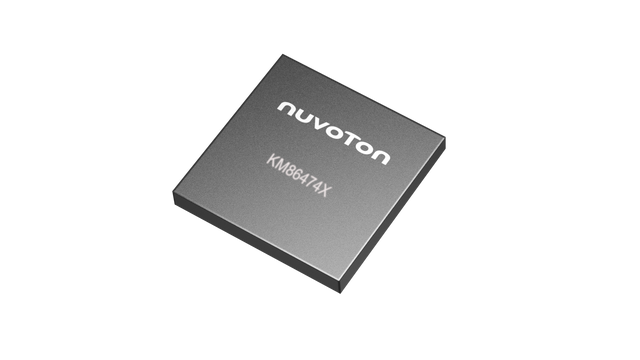

KM864741

• ✓Multi-protocol bidirectional re-timer
  • KM864741 is multi-protocol bidirectional re-timer for USB Type-C cable.
  • We provide a PC retimer solution that can transmit and receive up to 40Gbps.
  • Ideal for various devices equipped with USB (PC, cable, VR, etc…)
• ✓Supports USB4 backward compatibility and peripheral standards
  • USB4^®,Thunderbolt^™3,USB3.2,DisplayPort^™ 2.1,and DisplayPort^™ Alt mode
• ✓Simplify board design
  • An equalizer capable of compensating for signal loss of up to 35dB on the receiving side and an emphasis circuit
  • capable of compensating for up to 15dB on the transmitting side are installed to compensate for the attenuation
  • caused by the substrate and restore the signal.
  • As a result, the CPU and connectors within the device can be freely arranged, enabling flexible board design.
• Specification
  •
  • * Organization names, company names, product or service names mentioned in this web are registered trademarks or trademarks of each company or organization.
• Performance characteristics
  • USB Speed: USB4 Gen3 40Gbps
  • Lanes: 4 Lanes
  • Channel: Output4, Input 4
  • Protocol: USB4, USB3.2, DP2.1, Thunderbolt3
  • Input Equalizer: 35dB
  • Output Equalizer: 15dB
  • Package: BGA 69Pin 5x5mm Body Lead_Pitch 0.5mm

Technical Documents

• For more details, please visit Nuvoton Official Website: GO
