NuMaker-IoT-M263A

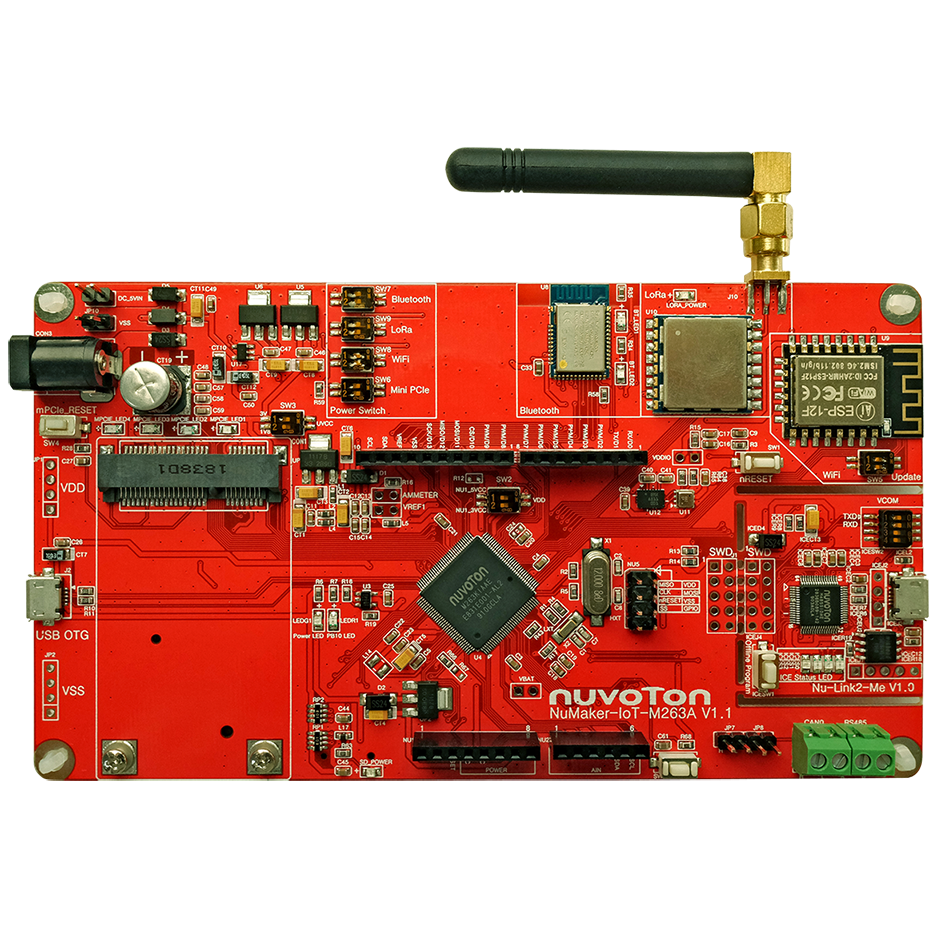

Board Introduction

The NuMaker-IoT-M263A developing board, is launched to speed up product design cycle with the IoT software package provided by Nuvoton, connecting the cloud of Arm Pelion, Amazon AWS, and Ali-Cloud is easy to use.

The NuMaker-IoT-M263A consists of two parts, the M263 platform with popular on-board wireless-connectivity/sensor modules, and an on-board Nu-Link2-Me debugger and programmer. The NuMaker-IoT-M263A allows users to quickly develop IoT ( Internet of Things ) related products and easily program and debug application.

The main microcontroller of NuMaker-IoT-M263A is M263KIAAE, with low power and robust security features. The NuMaker-IoT-M263A provides Arduino UNO compatible extension connectors, various power supply option and ammeter connector, makes it is easy to extend functionality and take current consumption measurement

The NuMaker-IoT-M263A provides popular wireless connectivity modules that used in IoT applications, include Wi-Fi, Bluetooth and LoRa modules. The NuMaker-IoT-M263A also supports a mini PCIe connector for inserting external modules to realize 3G/4G/NB-IoT connectivity functions, such as QUECTEL BG96/EC21 modules. Besides, the NuMaker-IoT-M263A integrates BOSCH environmental sensor and 9-axis sensor for acceleration, geo-magnetics, gas, barometric pressure, temperature and humidity sensing. Furthermore, the NuMaker-IoT-M263A supports CAN and RS485 transceiver for industrial control application.

The Nu-Link2-Me is a debugger and programmer that supports on-line programming and debugging through SWD interface. The on-board 16 Mbit SPI Flash allows it to off-line program the target microcontroller. The Nu-Link2-Me provides virtual COM port ( VCOM ) function to print out messages on PC. The Nu-Link2-Me can be separated from NuMaker-IoT-M263A, allowing user to use it as a mass production programming tool.

• Board Features

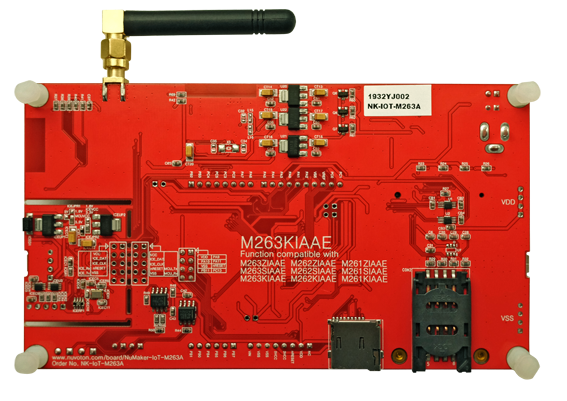

• NuMicro^® M263KIAAE used as main microcontroller with function downward compatible with:
  • M261ZIAAE
  • M261SIAAE
  • M261KIAAE
  • M262ZIAAE
  • M262SIAAE
  • M262KIAAE
  • M263ZIAAE
  • M263SIAAE
• On-board modules:
  • Wi-Fi module: ESP12-F
  • Bluetooth module: MDBT42Q-PAT
  • LoRa module: APC1278 ( for 408 / 433 / 470 MHz )
  • LoRa antenna: ANT60-433LA ( for 433 MHz )
• On-board sensors:
  • Environmental sensor: BME680
  • 9-axis sensor: BMX055
• Mini PCIe connector ( QUECTEL BG96/EC21 Is available for purchase to extend NB-IOT/3G/4G function ) with SIM card connector
• CAN and RS485 transceiver
• MicroSD card connector
• Arduino UNO compatible extension connectors
• Ammeter connector for measuring the microcontroller’s power consumption
• Fixable board power supply
  • External V_DD power connector
  • Arduino UNO compatible extension connector VIN
  • USB OTG connector on M263 platform
  • ICE USB connector on Nu-Link2-Me
  • Power jack for mini PCIe connector
• On-board Nu-Link2-Me debugger and programmer:
  • Debug through SWD interface
  • On-line /off-line programming
  • Virtual COM port function
