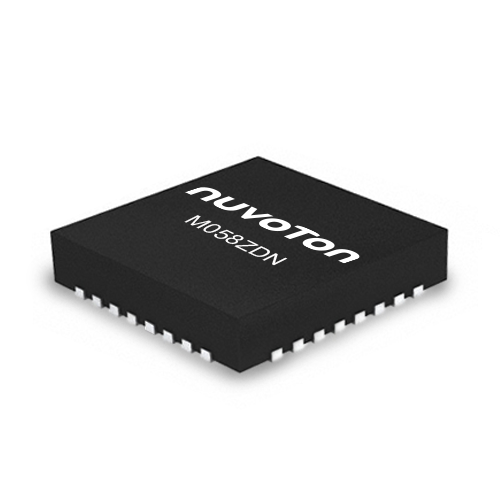

M058ZDN

The M051 operates at 2.5V ~ 5.5V and - 40 ℃ ~ 85 ℃ , and provides 22.1184 MHz high precision internal oscillator ( ± 1 % accuracy at 25 ℃ , 5V; full range ± 3 % ) , rich peripherals and high immunity ( 8 kV ESD, 4 kV EFT ) . Package types include QFN33 and LQFP48.

Applications

• Security/Alarm, Temperature Sensor, Motor, etc.

Key Features

• Core
  • Cortex^™-M0 processor
  • Max frequency of 50 MHz
  • Operating voltage: 2.5V to 5.5V
  • Temperature range: - 40 ℃ ~ 85 ℃
• Memory
  • 32 KB of flash memory
  • 4 KB of SRAM
  • 4 KB of Data Flash
  • ISP ( In-System Programming )
  • ICP ( In-Circuit Programming )
  • IAP ( In-Application Programming )
• ADC
  • Up to 5 channels
  • 12-bit resolution
  • Up to 760 kSPS
  • A/D conversion started by PWM
  • ± 1 ℃ accurate Temperature Sensor
• PWM
  • Up to five-channel PWM or two complementary paired PWM outputs
  • Period/duty trigger ADC function
• Connectivity
  • Up to one SPI s ( up to 36 MHz )
  • Up to two I²C s ( up to 400 kHz )
  • Up to two UART s
• Clock Control
  • 4 to 24 MHz external crystal oscillator
  • 22.1184 MHz internal RC oscillator ( ± 1 % accuracy at 25 ℃ , 5V )
