KE-KA49702A - KA49702A Up to 17cell monitoring IC evaluation board

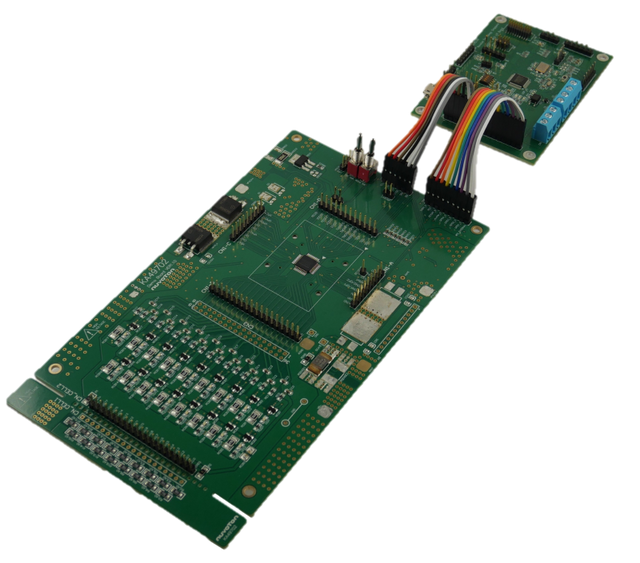

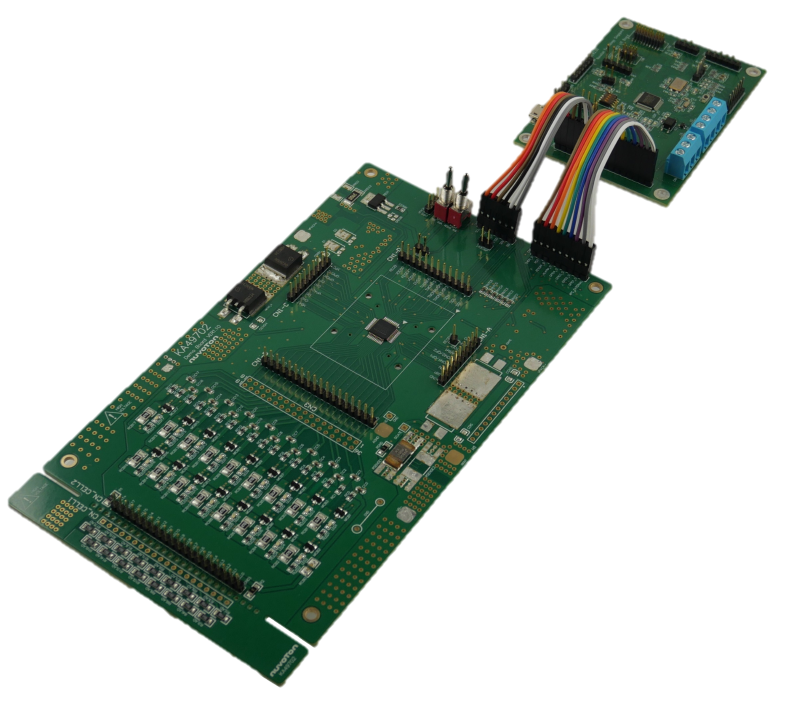

The KE-KA49702A is an evaluation board equipped with the KA49702A, capable of evaluating the voltage measurement of up to 17 battery cells, charging and discharging, cell balancing, fault detection, and more. The accompanying PC GUI software links with the MCU software to provide a high-level graphical user interface.

AFE Board

Battery cell voltage measurement, High side charging and discharging, cell balancing, fault detection, etc.

MCU Controller Board

MCU circuit (including software debugging interface)

Power management and MCU reset circuit

BM IC and PC GUI interface circuit

LED status indicators

Software

PC Graphical User Interface (GUI) Software

Other Accessories

Board connection wires

TTL-232R-3V3 cable

Various manuals
