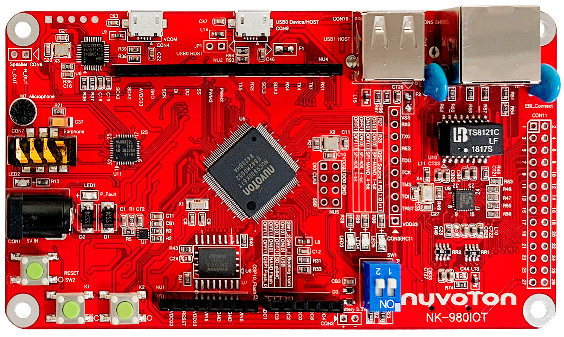

NuMaker-IIoT-NUC980

Linux Industrial IoT Development Platform

Nuvoton Technology provides industrial IoT development platform using NUC980DK61Y microprocessor, which is an industrial IoT open platform, including complete hardware design and software reference design. The platform is powered by Nuvoton ARM9 MPU with a 300 MHz internal speed and 64 MB DDR memory, single 10/100 Ethernet port, 2 high-speed USB hosts, 1 Gb SPI NAND Flash memory, microphone input, stereo headphone output and Arduino compatible interface. The platform supports embedded Linux OS which provides all IoT protocols you need, such as AWS Client / MQTT / Web Server, etc., users can use this platform to quickly develop a plenty of IoTapplications.

Development platform Features

• 32-bit ARM926EJ-STM NUC980DK61Y microprocessor core
• Microprocessor built-in 64 MB DDR memory
• Operating frequencies up to 300 MHz
• 1 Gbit SPI-NAND Flash
• 10 / 100 Ethernet x 1
• USB 2.0 High Speed Host x 1
• USB 2.0 High Speed Host / Device x 1
• Mono microphone input
• Stereo headphone output
• MicroSD card slot
• USB Power and CDC Debug Port
• External memory expansion interface
• Arduino compatible interface
• UART x 3

Technical Documents

• For more information and quick start guide, please visit the board page of: COMPANY WEBSITE
