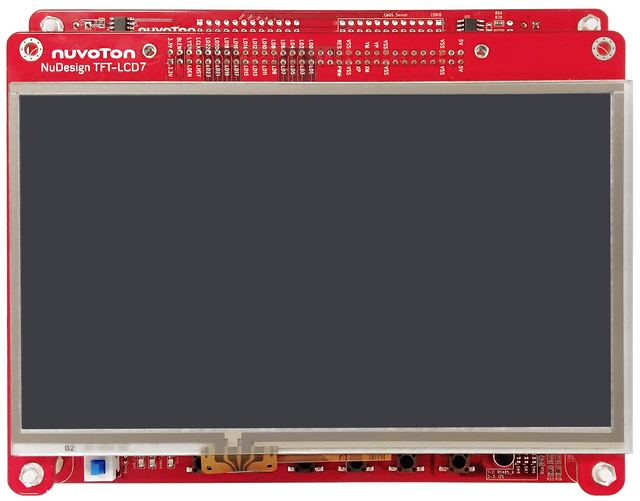

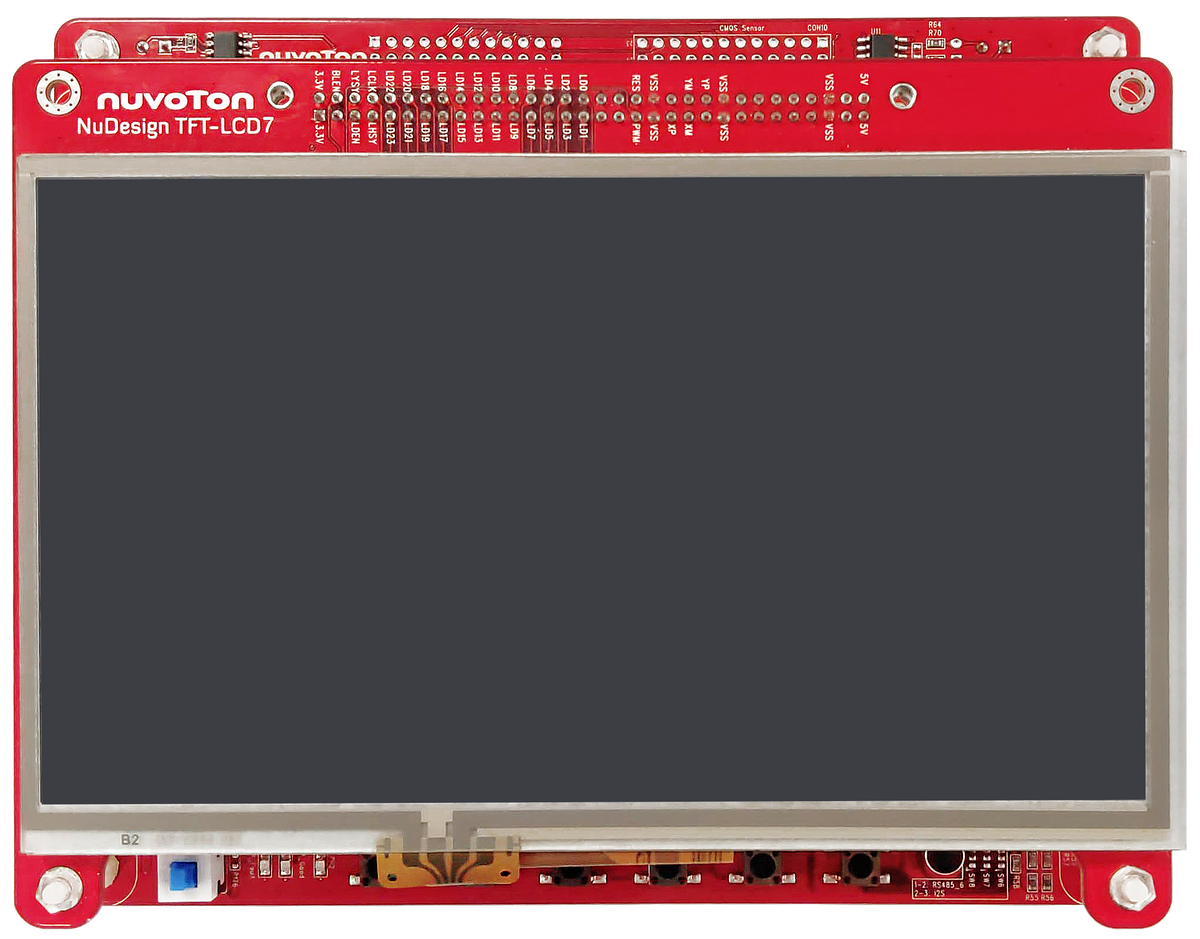

NuMaker-HMI-N9H30

Nuvoton offers the HMI platform which is embedded with Nuvoton N9H MPU. The N9H30 series with ARM926EJ-S core can operate at up to 300 MHz. It integrated TFT-LCD display controller, 2D graphics accelerator, and JPEG codec, supporting resolution up to 1024x768 pixels in parallel port, and the color depth up to 16.7 million colors ( 24-bit ) LCD screen output to deliver gorgeous display effects. It embedded up to 128 MB DDR SDRAM, along with ample hardware storage and computing space for excellent design flexibility.

NuMaker-HMI-N9H30 Development Board Features

• 32-bit ARM926EJ-S N9H30 series microprocessor, CPU speed up to 300 MHz
• MCP with 64 MB DDR
• 7” LCD (800x480) RGB 24-bit with 4-wire resistive touch panel
• USB 2.0 High-speed host x 1
• USB 2.0 High-speed device x 1
• 10/100 Ethernet x 2
• RS-232 x 2 (1 set is used for system development and debugging)
• RS-485 x 1
• CAN x 1
• 22 GPIO expansion ports, including 7 sets UART function
• Micro-SD/TF card slot x 1
• 32 MB SPI Flash
• 128 MB NAND
• Microphone input x 1
• Earphone / speaker output x 1
