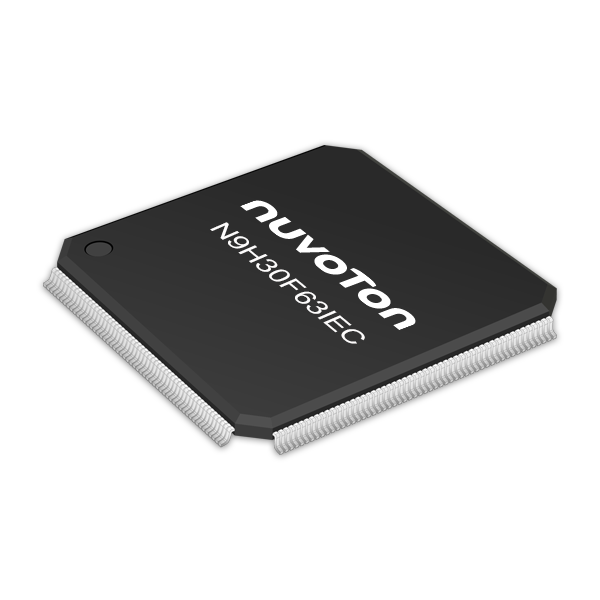

N9H30F63IEC

The N9H30F63IEC series with the ARM926EJ-S core can operate at up to 300 MHz . It offers 216-pin LQFP packages stacked with 64 MB DDR-II Memory to reduce PCB size and EMI issues. Rich peripherals include 11 sets of UART , SDIO/eMMC interface, NAND Flash interface, 24bit LCD controller interface, 2 sets CAN, 2 sets 10/100Mbps Ethernet MAC and High-Speed USB 2.0 host /device controller to allow more flexibility in designs. The N9H30F63IEC also supports industrial temperature from - 40 ℃ to 85 ℃ and targets Industrial Control, HMI.

Key Features

• Core
  • ARM926EJ-S core
  • Operates at up to 300 MHz
  • 16 KB I-cache/ 16 KB D-cache
• DDR Memory
  • Built-in 64 MB DDR II Memory </td
• USB 2.0 High Speed Host/Device
  • Up to two USB ports: one USB Host and one USB Host/Device
• System Boot
  • Boot from SPI Flash, NAND Flash, eMMC Flash or USB Device
• LCD Controller
  • Supports RGB565/ RGB666/ RGB888 interface
  • Max. resolution: 1024 x 768
• Video Input Interface
  • Supports CCIR656/ CCIR601 interface
  • Max resolution up to 3M pixels
• Dual SD Host Controller
  • Supports SD/ SDIO/ eMMC
• ADC
  • Supports 12-bit 8 channels ADC
  • 800 kSPS
  • Supports four-wire touchscreen function
• Peripheral
  • Supports SPI / I²C / PWM / UART /CAN
  • 10/100 Ethernet

Technical Documents

• For more details, please visit Nuvoton Official Website: GO
