NuMaker-M483KG

NuMaker- M483KG

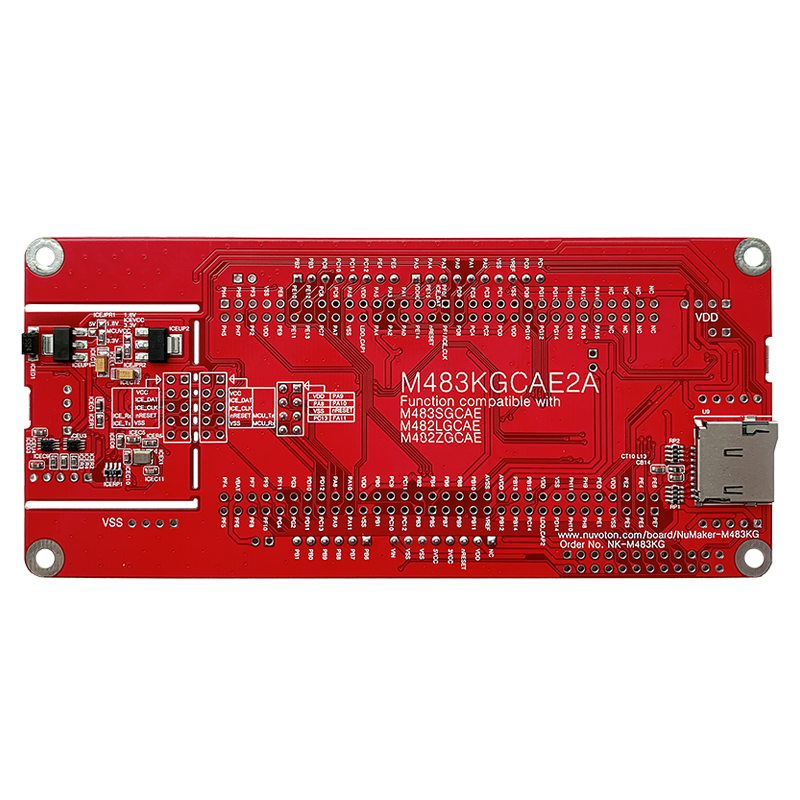

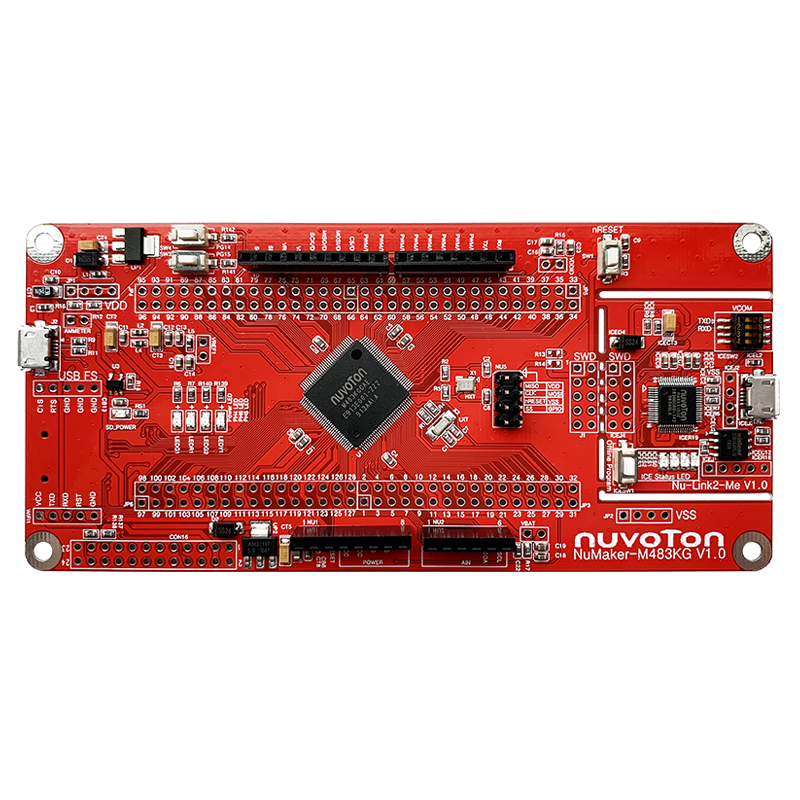

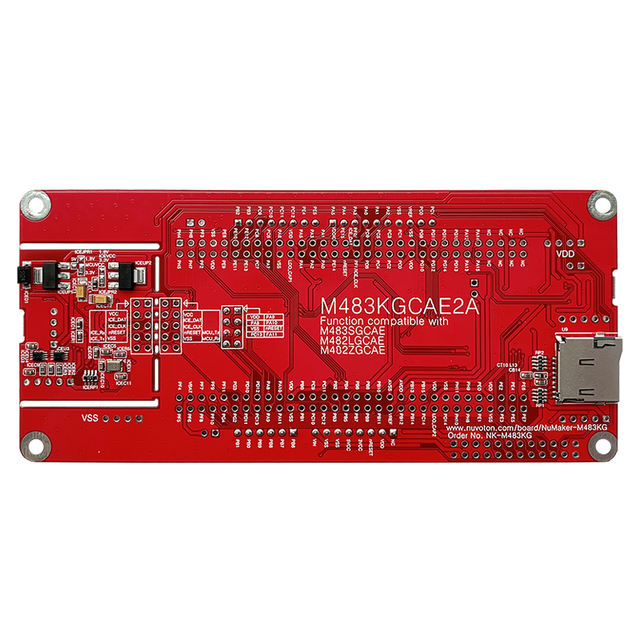

The NuMaker-M483KG consists of two parts, a M483 platform and an on-board Nu-Link2-Me debugger and programmer. The NuMaker-M483KG allows users to quickly develop and easily program and debug application.

The NuMaker-M483KG offers M483KGCAE2A full pins extension connectors and Arduino UNO compatible extension connectors. It is an easy-to-develop platform for user to expand the functionality and build the applications. The NuMaker-M483KG also provides an ammeter connector, allows user to monitor the microcontroller’s power consumption during development.

The Nu-Link2-Me is a debugger and programmer that supports on-line programming and debugging through SWD interface. The on-board 16 Mbit SPI Flash allows it able to off-line programming the target microcontroller. Nu-Link2-Me provides virtual COM port (VCOM) function to print out messages on PC. Nu-Link2-Me can be separated from NuMaker-M483KG, allowing user to use as a mass production programming tool.

Board Features

• NuMicro^® M483KGCAE2A used as main microcontroller with function downward compatible with:
• M483SGCAE M482LGCAE M482ZGCAE
• M483KGCAE2A full pins extension connectors
• Arduino UNO compatible extension connectors
• Ammeter connector for measuring the microcontroller’s power consumption
• Fixable board power supply:
• External V_DD power connector Arduino UNO compatible extension connector Vin USB FS connector on M483 platform ICE USB connector on Nu-Link2-Me
• l On-board Nu-Link2-Me debugger and programmer:
• Debug through SWD interface On-line/off-line programming Virtual COM port function

Technical Documents

• For more information and quick start guide, please visit the board page of: company website
