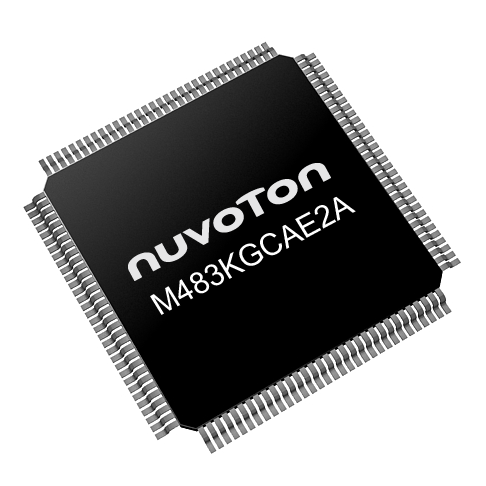

M483KGCAE2A

The NuMicro^® M483 CAN series is a high performance, low power microcontroller powered by the Arm^® Cortex^®-M4F core with DSP extension. Running up to 192 MHz with 130 µA/MHz dynamic power consumption provides excellent energy efficiency. The 256 KB embedded Flash memory supports up to 4 configurable eXecute-Only-Memory regions, and the 128 KB embedded SRAM provides multi-level retention in standby power-down mode. The factory pre-loaded bootloader delivers Secure Boot functionality to check code integrity inside embedded Flash memory. One-Time Programmable ROM is also included for product life-cycle management.

The NuMicro^® M483 CAN series supports operating voltage from 1.8V to 3.6V, and industrial operating temperature from -40°C to 105°C. It is integrated with two or three sets of CAN 2.0B interface, dual 12-bit 5 MSPS ADC, camera interface, USB full speed OTG with the crystal-less feature in device mode, and up to eight sets of high-speed UART interface. Package type includes LQFP64 and LQFP128.

Applications

• Motor Control, Industrial Control, Battery Management System, EV Charging Pile, etc.

Key Features

• Core
  • Up to 192 MHz Arm^® Cortex ^®-M4F delivering 1.25 DMIPS per MHz
  • DSP instruction set
  • Memory Protection Unit (MPU)
• Memory
  • 256 KB zero-wait state flash supports eXecute-Only-Memory (XOM)
  • 128 KB RAM (with 32 KB hardware parity check)
  • 2 KB OTP for general purpose
• Cyclic Redundancy Calculation Unit
• 16-ch Peripheral DMA Controller
• External Bus Interface
  • LCD parallel interface, i80 mode
• Clocks
  • 4 to 24 MHz crystal oscillator
  • 32 kHz oscillator for RTC (variation < ±0.25%)
  • Internal 48 MHz RC oscillator (X-less)
  • Internal 12 MHz RC oscillator (variation < ±2%)
  • Internal 10 kHz RC with calibration
• RTC
  • Independent V_BAT power pin
  • 80 bytes of battery-powered backup registers
• Timer & PWM
  • Four 32-bit timers
  • Twelve Enhanced PWM with twelve 16-bit timers
  • Twelve Basic PWM with two 16-bit timers
  • One 24-bit count-down SysTick timer
  • One watchdog timer
  • One window watchdog timer
• Analog
  • Two 12-bit, 5 MSPS SAR ADC (up to 24 channels) with 0 to analog supply conversion range
  • One 12-bit, 1 MSPS DAC
  • Two rail-to-rail comparators
• Communication Interfaces
  • Up to 8 low power UART interfaces (17 Mbps), including 2 LIN interfaces
  • Up to 1 ISO-7816 interface (3.4 MHz), supporting full duplex UART mode
  • Three I²C interfaces (Up to 3.4 Mbps)
  • Two Quad-SPI interfaces (Up to 96 MHz)
  • Up to 3 SPI/I²S interfaces (SPI up to 96 MHz, I²S up to 192 kHz/16-bit)
  • One I²S interface (192 kHz/32-bit)
  • Up to 3 CAN 2.0B interfaces
  • One Secure Digital Host Controllers (50 MHz)
• Control Interfaces
  • Two quadrature encoder interfaces (QEI)
  • Two 24-bit, 3-ch input capture timer/counter units
• Camera interface
  • CMOS Sensor interface with hardware 1-bit luminance output
• Advanced Connectivity
  • USB 2.0 full speed OTG controller with on-chip PHY
• Operating Characteristics
  • Voltage range: 1.8V to 3.6V
  • Temperature range: -40°C to 105°C
• IEC-60730 Class B compliance
• Cryptography Accelerator
  • AES-256
  • True random number generator

Technical Documents

• For more details, please visit Nuvoton Official Website: GO
• M483 CAN Series: DATADSHEET
